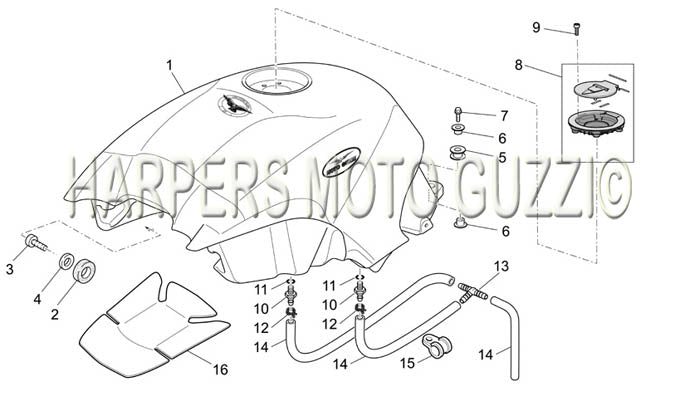

2006 2007 Sport 1200 1200 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | 05100230 | Fuel Tank Blank (#05100230) |
| 1 | 05100231 | Fuel Tank Red (#05100231) |
| 1 | 05100232 | Fuel Tank, Black (#05100232) |
| 1 | 05100235 | SERBATOIO BENZINA GREZZO USA (#05100235) |
| 1 | 05100236 | Fuel Tank - Red (#05100236) |
| 1 | 05100237 | Fuel tank, black (#05100237) |
| 2 | AP8201124 | Rubber Spacer (#AP8201124) |
| 3 | 98682414 | Hex Socket Screw (#98682414) |
| 4 | 95008208 | WASHER (#95008208) |
| 5 | 02107100 | TANK GROMMET (#02107100) |
| 6 | AP8121804 | Fuel tank support bush (#AP8121804) |
| 7 | AP8152291 | Screw w/flange (#AP8152291) |
| 8 | 05103930 | Tank Cap (#05103930) |
| 9 | B043864 | SCREW (CYLINDER HEAD) (#B043864) |
| 10 | 30103730 | UNION (#30103730) |
| 11 | AP8120965 | O-Ring (#AP8120965) |
| 12 | AP8101595 | Hose Clamp (#AP8101595) |
| 13 | AP8104666 | Tee union D.5 (#AP8104666) |
| 14 | AP8120952 | #14 Fuel pipe 5,5x10 (#AP8120952 ) |
| 15 | AP8104451 | Cable-guide (#AP8104451) |
| 16 | 05102930 | Fuel Tank Central Insulation (#05102930) |
