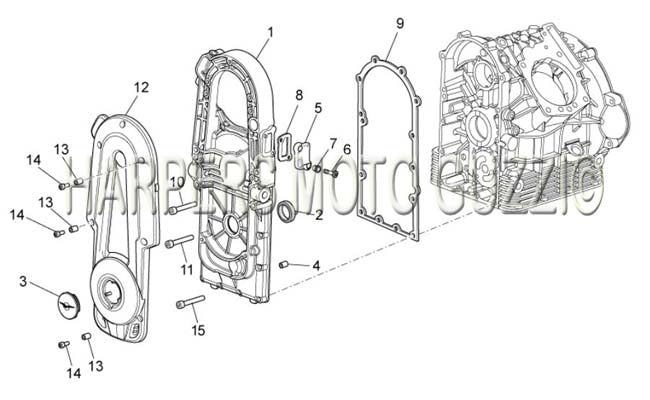

2009 2010 Stelvio 1200 NTX ABS 1200 Crank Case II
| Position | Part Number | Description |
|---|---|---|
| 1 | 976480 | TIMING COVER (#976480) |
| 2 | 90412237 | SEAL 22X35X7 Viton (#90412237) |
| 3 | 05002130 | Plug (#05002130) |
| 4 | 825597 | Nozzle for carter (#825597) |
| 5 | 976554 | Cap (#976554) |
| 6 | 98682320 | Screw (#98682320) |
| 7 | 91120607 | Bush 6,4x8,4x10,5 (#91120607) |
| 8 | 90706347 | O-Ring 34, 65X1,78 Viton (#90706347) |
| 9 | 976478 | METAL TIMING COVER GASKET(#976478) |
| 10 | AP8150046 | Hex socket screw M8x55* (#AP8150046) |
| 11 | 98682330 | Screw, 6mmx30mm (#98682330) |
| 12 | 05001630 | Alternator Cover, Grey (#05001630) |
| 13 | 91120606 | Bushing 6,8x8,8x5,8 (#91120606) |
| 14 | 98682316 | ALLEN BOLT (#98682316) |
| 15 | 98680335 | SCREW (#98680335) |
