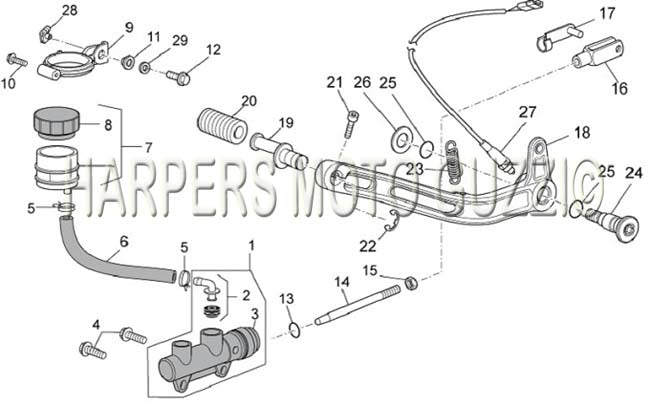

2009 2010 Stelvio 1200 NTX ABS 1200 Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 05666930 | Rear Brake Pump (#05666930) |
| 2 | AP8113594 | Rear brake pump unio (#AP8113594) |
| 3 | AP8113288 | Rubber bellows (#AP8113288) |
| 4 | AP8152279 | Screw w/flange (#AP8152279) |
| 5 | AP8101595 | Hose Clamp (#AP8101595) |
| 6 | AP8133779 | Rear brake pipe (#AP8133779) |
| 7 | 05663530 | Brake Oil Tank Complete (#05663530) |
| 8 | 17661052 | MASTER CYLINDER LID W/ BELLOWS (#17661052) |
| 9 | 05666030 | Tank Support (#05666030) |
| 10 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 11 | AP8221145 | T Bush* (#AP8221145) |
| 12 | 598839 | SCREW (#598839) |
| 13 | AP8120178 | O-ring 112 (#AP8120178) |
| 14 | 977041 | MASTER CYLINDER ROD (#977041) |
| 15 | 92606206 | Nut (#92606206) |
| 16 | AP8113081 | Fork M6 (#AP8113081) |
| 17 | AP8113082 | Clip (#AP8113082) |
| 18 | 06677000 | GRISO REAR BRAKE LEVER (#06677000) |
| 19 | AP8121221 | BRAKE LEVER PIN (AP8121221) (#AP8121221) |
| 20 | AP8120912 | Lever rubber (#AP8120912) |
| 21 | 98682316 | ALLEN BOLT (#98682316) |
| 22 | AP8150462 | Circlip d9 (#AP8150462) |
| 23 | 30434000 | SPRING, SIDE STAND (#30434000) |
| 24 | 884033 | BRAKE LEVER PIN (884033) (#884033) |
| 25 | AP8144007 | O-Ring (#AP8144007) |
| 26 | 95008310 | Washer (#95008310) |
| 27 | AP8112996 | Microswitch (#AP8112996) |
| 28 | 28576592 | Nut w/ Clip, 6mm (#28576592) |
| 29 | 95021206 | Washer (#95021206) |
