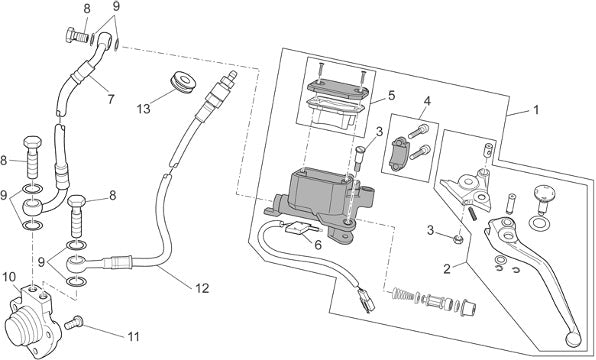

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Clutch Control Complete
| Position | Part Number | Description |
|---|---|---|
| 1 | 978607 | CLUTCH PUMP MASTER CYL (#978607) |
| 1 | AP8106713 | Clutch pump (#AP8106713) |
| 2 | 981046 | CLUTCH LEVER ASSY (#981046) |
| 2 | AP8118659 | Clutch lever (#AP8118659) |
| 3 | 03604845 | FRONT BRAKE LEVER PIN (#03604845) |
| 4 | AP8113993 | U-bolt (#AP8113993) |
| 5 | AP8113997 | Tank cap (#AP8113997) |
| 6 | AP8113998 | Microswitch (#AP8113998) |
| 7 | 06606500 | TUBAZIONE COMANDO FRIZION GRISO 1000 (#06606500) |
| 8 | AP8133594 | Oil pipe screw (#AP8133594) |
| 9 | AP8113004 | WASHER 10x14x1,6* (#AP8113004) |
| 10 | 978739 | CLUTCH OIL PUMP (#978739) |
| 11 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 12 | 05606630 | Float Chambe Clutch Pipe (#05606630) |
| 13 | AP8120594 | Silent-block (#AP8120594) |
