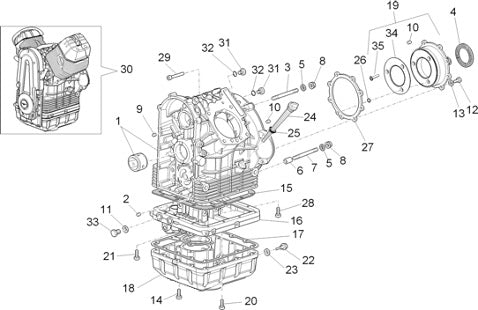

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Crank Case I
| Position | Part Number | Description |
|---|---|---|
| 1 | 976539 | CRANKCASE, ASSY (#976539) |
| 2 | 411209 | DOWEL (#411209) |
| 3 | 96508066 | SHORT STUD (#96508066) |
| 4 | 90405367 | CRANKSHAFT SEAL - REAR MAIN (#90405367) |
| 5 | 14615901 | WASHER (#14615901) |
| 6 | 12018900 | BUSH (#12018900) |
| 7 | 96508075 | LONG STUD (#96508075) |
| 8 | 92660021 | Nut (#92660021) |
| 9 | 95512081 | PIN (#95512081) |
| 10 | 560110 | DOWEL (#560110) |
| 11 | 01154230 | GASKET (#01154230) |
| 12 | 98084425 | Bolt 8mmx25mm (#98084425) |
| 13 | 61270300 | WASHER (#61270300) |
| 14 | 98680335 | SCREW (#98680335) |
| 15 | 01003651 | Gasket (#01003651) |
| 16 | 976502 | FLANGE OIL SUMP (#976502) |
| 17 | 05003630 | Gasket (#05003630) |
| 18 | 976486 | OIL SUMP BLACK (#976486) |
| 19 | 874213 | #19 Complete flange (#874213) |
| 20 | AP4ADN000007 | Hex socket screw m6x55 (#AP4ADN000007) |
| 21 | 98680360 | Screw (#98680360) |
| 22 | 31003766 | DRAIN PLUG (#31003766) |
| 23 | 01528930 | SEALING WASHER (#01528930) |
| 24 | 05004930 | Oil Level Plug (#05004930) |
| 25 | 90706178 | O RING (#90706178) |
| 26 | 1A008362 | SEAL RING (O-RING) (#1A008362) |
| 27 | 874257 | CARTER-CRANKSHAFT FLANG GASKET (#874257) |
| 28 | 98680340 | Screw (#98680340) |
| 29 | AP8152291 | Screw w/flange (#AP8152291) |
| 30 | 976929 | Engine cpl. (#976929) |
| 30 | 9769945 | Engine cpl. (#9769945) |
| 31 | 12022600 | PLUG (#12022600) |
| 32 | 90706203 | O RING (#90706203) |
| 33 | 95980216 | DRAIN PLUG (#95980216) |
| 34 | 874134 | OIL COLLECT DISC (#874134) |
| 35 | 015935 | SCREW WITH CYLINDRICAL HEAD (#015935) |
