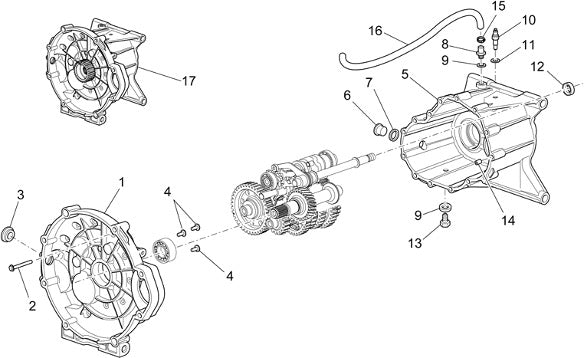

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Engine Transmission Cage
| Position | Part Number | Description |
|---|---|---|
| 1 | 976453 | CLUTCH BOX (#976453) |
| 2 | 97202355 | Screw W/Flange M6 X 55 (#97202355) |
| 3 | 93180220 | TIMING HOLE PLUG (#93180220) |
| 4 | 98370616 | BOLT (#98370616) |
| 5 | 879869 | Transmission cage (#879869) |
| 6 | 95980319 | Oil Plug M18X1,5 (#95980319) |
| 7 | 18144350 | CRUSH WASHER (#18144350) |
| 8 | 5204930 | #08 Breather plug (#5204930) |
| 9 | 1528930 | #26 Gasket 10x18x1,5 (#1528930) |
| 10 | 19207220 | SWITCH, NEUTRAL (#19207220) |
| 11 | ||
| 12 | 90401424 | Gasket Ring (#90401424) |
| 13 | 31003766 | DRAIN PLUG (#31003766) |
| 14 | 19002020 | BUSH (#19002020) |
| 15 | ||
| 16 | ||
| 17 | 976934 | Gear box assy (#976934) |
