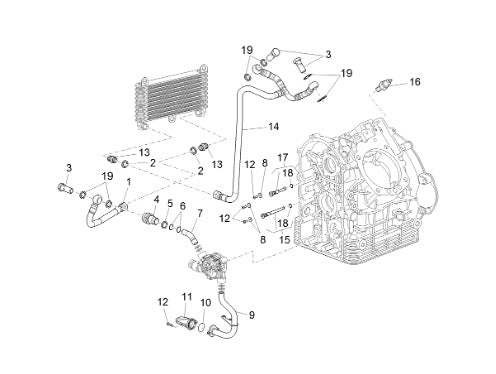

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Lubrication
| Position | Part Number | Description |
|---|---|---|
| 1 | 874680 | OIL RADIETOR DELIVERY OIL PIPE (#874680) |
| 2 | 01154230 | GASKET (#01154230) |
| 3 | 874223 | SCREW FOR PIPE FITTING (#874223) |
| 4 | 874669 | Nipple (#874669) |
| 5 | 118737 | PACKING (#118737) |
| 6 | 434947 | RING (#434947) |
| 7 | 874646 | PIPE (#874646) |
| 8 | 013763 | PLAIN WASHER (4,2x12x1) (#013763) |
| 9 | 874645 | INTAKE PIPE (#874645) |
| 10 | 969323 | O RING (#969323) |
| 11 | 874655 | INTAKE OIL FILTER (#874655) |
| 12 | 581957 | SOCKET HEAD SCREW (#581957) |
| 13 | 01161331 | REDUCER (#01161331) |
| 14 | 874716 | HEAD CYLINDER DELIVERY OIL PIPE (#874716) |
| 15 | 874240 | COMPLETE OIL NOZZLE LEFT CYLINDER (#874240) |
| 16 | 978854 | MINIMUM PRESSURE OIL SWITCH (#978854) USE 1D001138 |
| 17 | 874239 | COMPLETE OIL NOZZLE RIGHT CYLINDER (#874239) |
| 18 | 874238 | Circlip (#874238) |
| 19 | 976597 | GASKET (#976597) |
