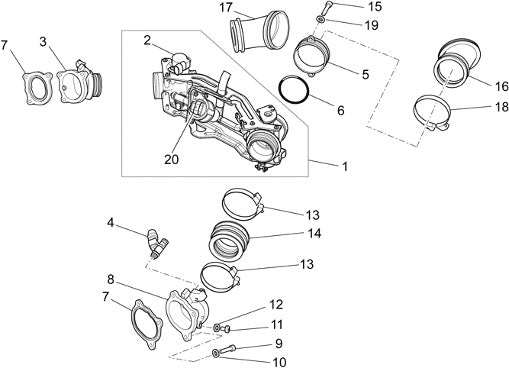

2009 2013 Griso 1200 8v E3 2007 2013 Griso S.E. E3 Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 873904 | THROTTLE BODY GROUP (#873904) |
| 2 | 981010 | RING SET (#981010) |
| 3 | 873490 | LEFT INTAKE FITTING (#873490) |
| 4 | 976555 | Fuel Injector (#976555) |
| 4 | CM074706 | FUEL INJECTOR (#CM074706) |
| 5 | 976498 | FLANGE (#976498) |
| 6 | 976534 | OR GASKET (#976534) |
| 7 | 873879 | PACKING BETWEEN HEAD INTAKE FITTING (#873879) |
| 8 | 873491 | RIGHT INTAKE FITTING (#873491) |
| 9 | 98370625 | ALLEN SCREW (#98370625) USE STAB6X25 |
| 10 | 95008206 | WASHER (#95008206) |
| 11 | 98350310 | Screw (#98350310) |
| 12 | 95100116 | WASHER (#95100116) |
| 13 | 93305061 | CLAMP (#93305061) |
| 14 | 873861 | INTAKE TROTTLE VALVE-BODY/INTAKE FITTING (#873861) |
| 15 | 98682212 | Hex Socket Screw (#98682212) |
| 16 | 976494 | LEFT INTAKE MANIFOLD (#976494) |
| 17 | 976495 | RIGHT INTAKE MANIFOLD (#976495) |
| 18 | ||
| 19 | 95008305 | Washer (#95008305) |
| 20 | 981011 | stepper motor (#981011) |
