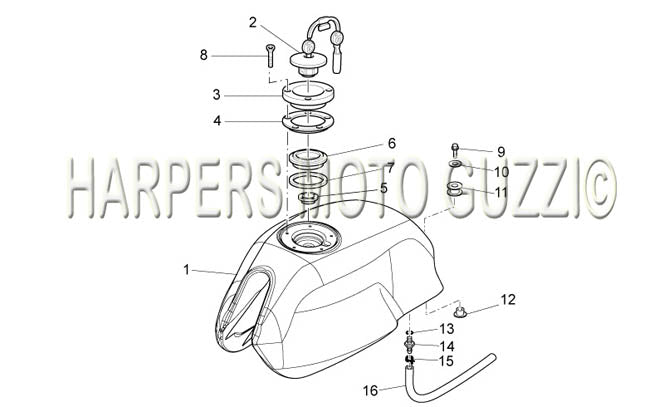

2009 V7 Cafe 750 Fuel Tank
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 1 | 88346900XG4 | Fuel tank, yellow (#88346900XG4) |
| 1 | 978928 | RAW FUEL TANK (#978928) |
| 1 | 97892800BMA | Fuel tank, white (#97892800BMA) |
| 1 | 97892800XG4 | Fuel tank, yellow (#97892800XG4) |
| 2 | 883185 | Tank cap (#883185) |
| 2 | 883476 | Tank Cap (#883476) |
| 3 | 978929 | Gas Cap Flange (#978929) |
| 4 | 883193 | SPACER (#883193) |
| 5 | 03101720 | RESTRICTOR 38MM (#03101720) |
| 6 | 03102200 | GAS CAP SEAT (#03102200) |
| 7 | 03101600 | GAS CAP GASKET (#03101600) |
| 8 | 831153 | BOLT (#831153) |
| 9 | AP8152291 | Screw w/flange (#AP8152291) |
| 10 | 95005312 | Washer, 8.5x24x2 (#95005312) |
| 11 | 02107100 | TANK GROMMET (#02107100) |
| 12 | 883252 | SPACER (#883252) |
| 13 | AP8120965 | O-Ring (#AP8120965) |
| 14 | 30103730 | UNION (#30103730) |
| 15 | AP8101595 | Hose Clamp (#AP8101595) |
| 16 | 00823944050 | HOSE (#00823944050) |
