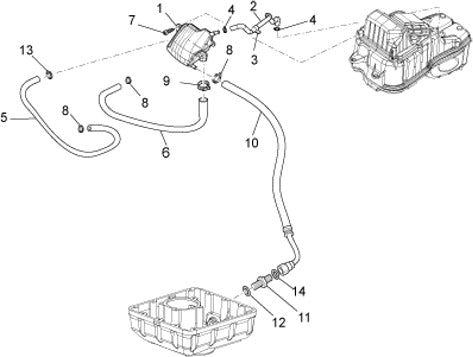

2010 2016 Norge 1200 ie 8v E3 ABS Blow By System
| Position | Part Number | Description |
|---|---|---|
| 1 | 883495 | BLOW-BY TANK (#883495) |
| 2 | 05157430 | Breather Pipe (#05157430) |
| 3 | 890721 | Hose clamp (#890721) |
| 4 | AP8102520 | Hose clamp (#AP8102520) |
| 5 | 883500 | LEFT VENT HOSE (#883500) |
| 6 | 883499 | RIGHT VENT HOSE (#883499) |
| 7 | AP8150509 | Self-taping screw (#AP8150509) |
| 8 | AP8101586 | Hose clip d.15,5x6,6 (#AP8101586) |
| 9 | 93306018 | Clamp, 17x29x8 (#93306018) |
| 10 | 05159330 | Pipe (#05159330) Superseded by 2B001409 |
| 11 | 01161331 | REDUCER (#01161331) |
| 12 | 01154230 | GASKET (#01154230) |
| 13 | 93306017 | HOSE CLAMP (#93306017) |
| 14 | 899064 | O-RING (#899064) |
