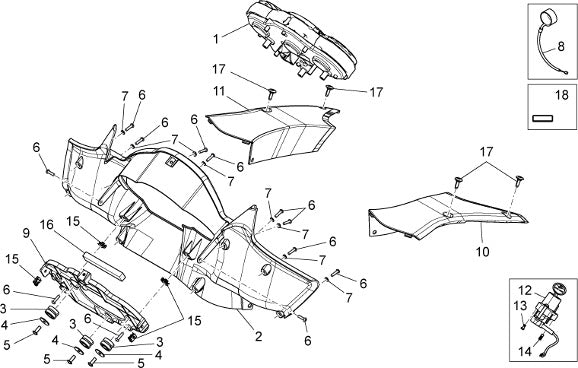

2010 2016 Norge 1200 ie 8v E3 ABS Dashboard
| Position | Part Number | Description |
|---|---|---|
| 1 | 883567 | Dashboard Assy Kph (#883567) |
| 1 | 883568 | Dashboard (#883568) |
| 2 | 897582 | Support (#897582) |
| 3 | AP8220150 | RUBBER SPACER (#AP8220150) |
| 4 | AP8150255 | Washer 5x20x1,5* (#AP8150255) |
| 5 | AP8150509 | Self-taping screw (#AP8150509) |
| 6 | 581957 | SOCKET HEAD SCREW (#581957) |
| 7 | AP8144565 | WASHER (#AP8144565) |
| 8 | 981087 | ANTENNA IMMOBILIZER (#981087) |
| 9 | 897585 | Flange (#897585) |
| 10 | 897581 | LH Panel (#897581) |
| 11 | 897580 | RH Panel (#897580) |
| 12 | 05782530 | Main Switch-Steering Lock (#05782530) |
| 13 | 98682430 | Screw (#98682430) |
| 14 | AP8152238 | Shear rivet M8 x 28 (#AP8152238) |
| 15 | AP8102381 | CLIP M4 (#AP8102381) |
| 16 | 01573960 | RUBBER PAD (#01573960) |
| 17 | AP8152302 | SCREW W/ FLANGE (#AP8152302) USE 2B014101 |
| 18 | 883720 | BUFFER (#883720) |
