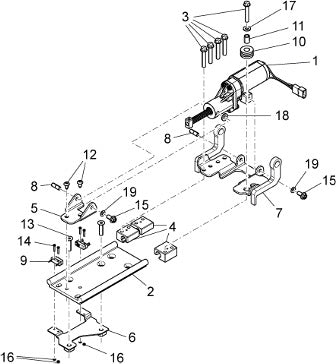

2010 2016 Norge 1200 ie 8v E3 ABS Electro Windscreen I
| Position | Part Number | Description |
|---|---|---|
| 1 | 655463 | MICRO ATTUATOR (#655463) |
| 2 | 655461 | GUIDE (#655461) |
| 3 | 018639 | SCREW M6X20 (#018639) |
| 4 | 977638 | GUIDE (#977638) |
| 5 | 655679 | STROKE END ACTUATOR (#655679) |
| 6 | 654172 | STIRRUP SUPPORT (#654172) |
| 7 | 883795 | PLATE WITH I.P. (#883795) |
| 8 | 655465 | THREADED PIN (#655465) |
| 9 | 640468 | N.C. PUSH BUTTON (#640468) |
| 10 | 487665 | Buffer for heat shield (#487665) |
| 11 | 231908 | SPACER (#231908) |
| 12 | 274369 | SCREW (#274369) |
| 13 | 840542 | COUNTERSUNK SOCKED HEAD SCREW (#840542) |
| 14 | 654174 | SCREW (#654174) |
| 15 | AP8152277 | Screw w/flange (#AP8152277) |
| 16 | 654175 | NUT (#654175) |
| 17 | 003056 | PLANE WASHER 6.4x12x1 (#003056) |
| 18 | 013880 | PLAIN WASHER (#013880) |
| 19 | 006976 | WAVED SPRING WASHER (#006976) |
