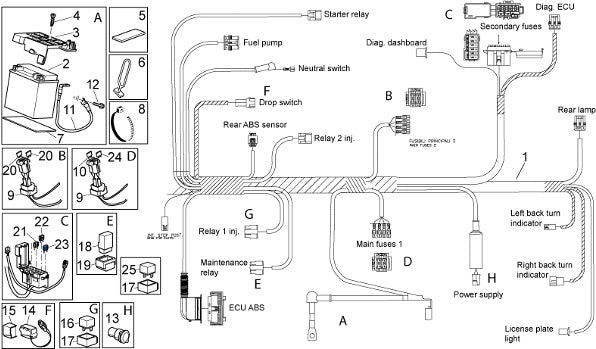

2010 2016 Norge 1200 ie 8v E3 ABS Frame Electrical System II
| Position | Part Number | Description |
|---|---|---|
| 1 | 886209 | Main wiring harness (#886209) |
| 2 | 883818 | BATTERY (#883818) |
| 3 | 883819 | CARRIER BATTERY (#883819) |
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | ||
| 8 | 14609650 | TIE WRAP (#14609650) |
| 8 | 30609600 | FASTENER A (#30609600) |
| 9 | ||
| 10 | ||
| 11 | 05747930 | Ground-Battery Lead (#05747930) |
| 12 | ||
| 13 | ||
| 14 | 584509 | Fuel cut off/ tilt sensor (#584509) |
| 15 | ||
| 16 | 895481 | Starter relay (#895481) |
| 17 | ||
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | ||
| 24 | ||
| 25 | 29732550 | RELAY (#29732550) |
