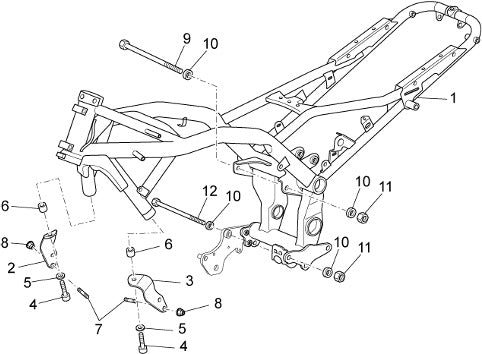

2010 2016 Norge 1200 ie 8v E3 ABS Frame Frame I
| Position | Part Number | Description |
|---|---|---|
| 1 | 883284 | FRAME WITH IP (#883284) |
| 1 | 884187 | Frame (#884187) |
| 2 | 05421430 | Rh Plate (#05421430) |
| 3 | 05421530 | Lh Plate (#05421530) |
| 4 | 98682650 | Hex Socket Screw M12X50 (#98682650) |
| 5 | 30217900 | LOCK WASHER (#30217900) |
| 6 | 91181215 | Spacer 12X35X14 (#91181215) |
| 7 | 977809 | Stud bolt (#977809) |
| 8 | ||
| 9 | ||
| 10 | 95008313 | Washer, 13X24X2.5 (#95008313) |
| 11 | ||
| 12 |
