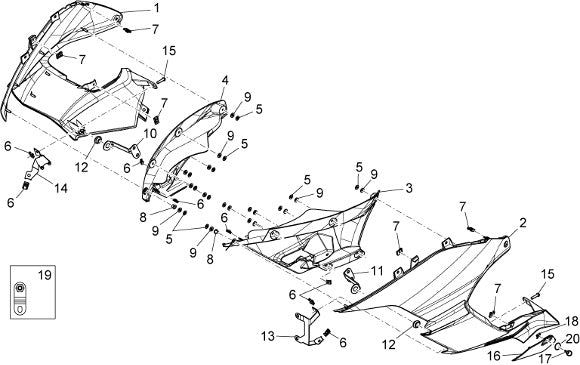

2010 2016 Norge 1200 ie 8v E3 ABS Frame Front Body II
| Position | Part Number | Description |
|---|---|---|
| 1 | 883514 | RH lat.fairing (#883514) |
| 1 | ||
| 1 | ||
| 1 | ||
| 1 | ||
| 1 | 884247 | RH lat.fairing (#884247) |
| 1 | ||
| 1 | ||
| 2 | 883515 | LH lat.fairing (#883515) |
| 2 | ||
| 2 | ||
| 2 | ||
| 2 | ||
| 2 | 884248 | LH lat.fairing (#884248) |
| 2 | ||
| 2 | ||
| 3 | 883517 | LH BLINKER SUPPORT (#883517) |
| 3 | 884250 | LH BLINKER support (#884250) |
| 4 | 883516 | RH BLINKER support (#883516) |
| 4 | 884249 | RH BLINKER support (#884249) |
| 5 | ||
| 6 | ||
| 7 | ||
| 8 | ||
| 9 | 479882 | Spacer for silencer protection fixing (#479882) |
| 10 | 977125 | PLATE UPPER RIGHT FRAME RETAINER (#977125) |
| 11 | 977126 | PLATE UPPER LEFT FRAME RETAINER (#977126) |
| 12 | ||
| 13 | 977121 | LH REAR PLATE (#977121) |
| 14 | 977119 | R H rear plate (#977119) |
| 15 | ||
| 16 | 883526 | OIL INSPECTOR DOOR (#883526) |
| 16 | ||
| 16 | ||
| 16 | ||
| 16 | ||
| 16 | ||
| 17 | 887426 | Pin (#887426) |
| 18 | 97240600 | Special clip (#97240600) |
| 19 | 883747 | Plate (#883747) |
| 20 |
