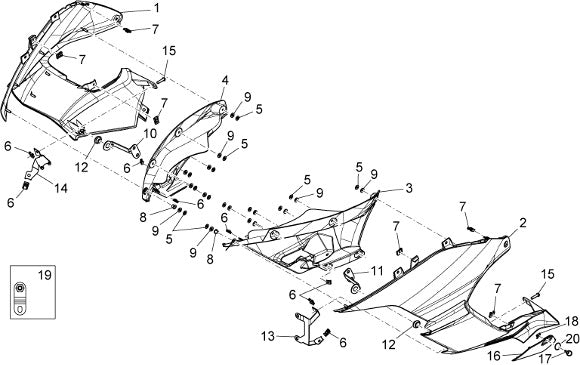

2010 2016 Norge 1200 ie 8v E3 ABS Front Body II
| Position | Part Number | Description |
|---|---|---|
| 1 | 883514 | RH lat.fairing (#883514) |
| 1 | 88351400BM | RH lat.fairing, White (#88351400BM) |
| 1 | 88351400F2 | RH side panel, grey (#88351400F2) |
| 1 | 88351400XN2 | RH lat.fairing, black (#88351400XN2) |
| 1 | 88351400YM1 | RH lat.fairing, brown. (#88351400YM1) |
| 1 | 884247 | RH lat.fairing (#884247) |
| 1 | 88424700BM | RH lat.fairing (#88424700BM) |
| 1 | 88424700YM2 | RH lat.fairing (#88424700YM2) |
| 2 | 883515 | LH lat.fairing (#883515) |
| 2 | 88351500BM | LH lat.fairing, White (#88351500BM) |
| 2 | 88351500F2 | LH lat.fairing, grey (#88351500F2) |
| 2 | 88351500XN2 | LH lat.fairing, black (#88351500XN2) |
| 2 | 88351500YM1 | LH BROWN LAT. FAIRING (#88351500YM1) |
| 2 | 884248 | LH lat.fairing (#884248) |
| 2 | 88424800BM | LH lat.fairing (#88424800BM) |
| 2 | 88424800YM2 | LH lat.fairing (#88424800YM2) |
| 3 | 883517 | LH BLINKER SUPPORT (#883517) |
| 3 | 884250 | LH BLINKER support (#884250) |
| 4 | 883516 | RH BLINKER support (#883516) |
| 4 | 884249 | RH BLINKER support (#884249) |
| 5 | AP8150450 | Washer for Shafts (#AP8150450) |
| 6 | AP8102381 | CLIP M4 (#AP8102381) |
| 7 | AP8102375 | Clip (#AP8102375) |
| 8 | AP8121795 | BUSHING (#AP8121795) |
| 9 | 479882 | Spacer for silencer protection fixing (#479882) |
| 10 | 977125 | PLATE UPPER RIGHT FRAME RETAINER (#977125) |
| 11 | 977126 | PLATE UPPER LEFT FRAME RETAINER (#977126) |
| 12 | AP8220162 | Rubber spacer (#AP8220162) |
| 13 | 977121 | LH REAR PLATE (#977121) |
| 14 | 977119 | R H rear plate (#977119) |
| 15 | AP8152339 | SCREW W/FLANGE (#AP8152339) |
| 16 | 883526 | OIL INSPECTOR DOOR (#883526) |
| 16 | 88352600BM | OIL INSPECTOR DOOR (#88352600BM) |
| 16 | 88352600F2 | OIL INSPECTOR DOOR (#88352600F2) |
| 16 | 88352600XN2 | OIL INSPECTOR DOOR (#88352600XN2) |
| 16 | 88352600YM1 | OIL INSPECTOR DOOR (#88352600YM1) |
| 16 | 88352600YM2 | OIL INSPECTOR DOOR (#88352600YM2) |
| 17 | 887426 | Pin (#887426) |
| 18 | 97240600 | Special clip (#97240600) |
| 19 | 883747 | Plate (#883747) |
| 20 | AP8120965 | O-Ring (#AP8120965) |
