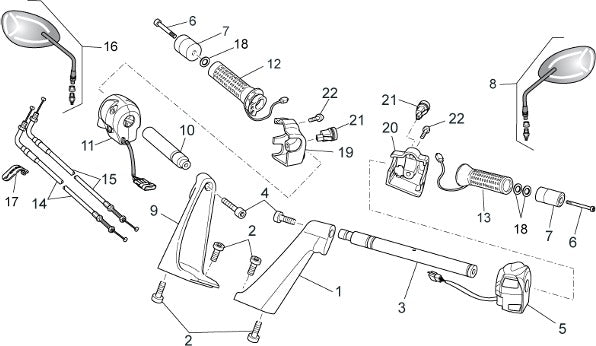

2010 2016 Norge 1200 ie 8v E3 ABS Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 898129 | LEFT HANDLEBAR (#898129) |
| 2 | 98690440 | BOLT (#98690440) |
| 3 | 05600930 | Lh Handlebar Tube (#05600930) |
| 4 | 98832430 | ALLEN BOLT (#98832430) |
| 5 | 886229 | LH lights selector (#886229) |
| 6 | 98680370 | BAR END BOLT (#98680370) |
| 7 | AP8104572 | Anti.v weight, black (#AP8104572) |
| 8 | AP8104922 | MIRROR ROUND LH (#AP8104922) |
| 9 | 898128 | Right half handlebar (#898128) |
| 10 | 05600230 | Rh Handlebar Tube (#05600230) |
| 11 | 886160 | ELETTRICAL DEVICE (#886160) |
| 12 | 977906 | MANOPOLA DX RISCALDATA (#977906) |
| 13 | AP8706527 | LH heated grip (#AP8706527) Use ID003485 |
| 14 | 886632 | Gas lever transmission (#886632) |
| 15 | 886633 | TRANSMISSION CONT. ACCEL. (#886633) |
| 16 | AP8104921 | MIRROR RH (#AP8104921) |
| 17 | 01609630 | Clamp (#01609630) |
| 17 | 03609600 | RETAINER (#03609600) |
| 18 | 05604630 | SPACER 6X21X4 (#05604630) |
| 19 | 977628 | RIGHT HALF RING WITH PUSHBUTTON (#977628) |
| 20 | 977629 | LEFT HALF RING WITH PUSHBUTTON (#977629) |
| 21 | 977740 | PULSANTE N.A. (#977740) |
| 22 | 98612325 | BOLT (#98612325) |
