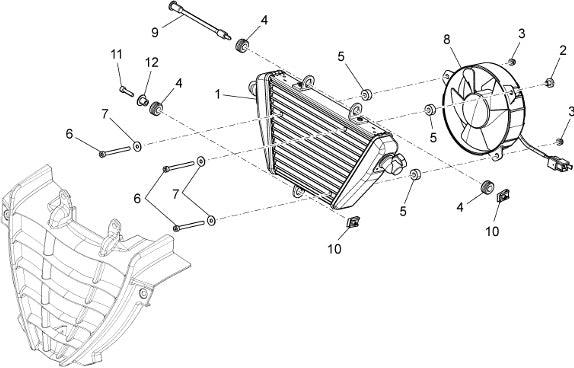

2010 2016 Norge 1200 ie 8v E3 ABS Oil Radiator
| Position | Part Number | Description |
|---|---|---|
| 1 | 886123 | Oil cooler (#886123) |
| 2 | 886594 | THREADED BUSH (#886594) |
| 3 | AP8152306 | Self-Locking Nut (#AP8152306) |
| 4 | AP8120030 | Rubber Spacer (#AP8120030) |
| 5 | AP8161083 | Spacer (#AP8161083) |
| 6 | AP8150523 | Hex socket screw M5x60* (#AP8150523) |
| 7 | AP8150248 | Washer 5.5mm x 15mm x 1.6 mm (#AP8150248) |
| 8 | 886235 | ELECTRIC FAN (#886235) |
| 9 | 898050 | Pin (#898050) |
| 10 | AP8102375 | Clip (#AP8102375) |
| 11 | AP8150252 | ALLEN SCREW M5X20 Z.N. 8.8 UNI 5931 (#AP8150252) |
| 12 | 898244 | T bush (#898244) |
