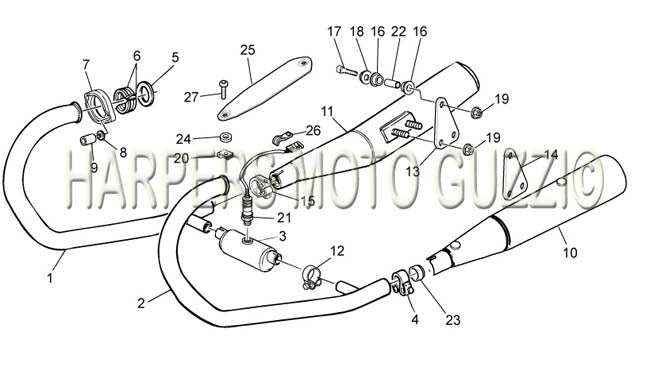

2010 Nevada 750 S Frame Exhaust Unit
| Position | Part Number | Description |
|---|---|---|
| 1 | 978953 | Rh Exhaust Pipe - Breva (#978953) |
| 2 | 978954 | Rh Exhaust Pipe - Breva (#978954) |
| 3 | 978955 | Expansion Chamber - Breva (#978955) |
| 4 | 883294 | LH EXHAUST MANIFOLD CLAMP (#883294) |
| 5 | 19025280 | GASKET, EXHAUST (#19025280) |
| 6 | 19025460 | Spacer (#19025460) |
| 7 | 32121010 | Ring Nut - Breva (#32121010) |
| 8 | 03013800 | WAVE WASHER (#03013800) |
| 9 | 31121880 | Exhaust flange nut (#31121880) |
| 10 | 883710 | LH silencer (#883710) |
| 11 | 883709 | RH silencer (#883709) |
| 12 | 978385 | Hose clamp (#978385) |
| 13 | 883297 | STIRRUP (#883297) |
| 14 | 883298 | STIRRUP (#883298) |
| 15 | 883293 | RH EXHAUST MANIFOLD CLAMP (#883293) |
| 16 | ||
| 17 | 98680440 | Screw (#98680440) |
| 18 | ||
| 19 | 92640508 | Nut (#92640508) |
| 20 | 28576591 | CLIP (#28576591) |
| 21 | 32727010 | SENSOR-LAMDA (#32727010) |
| 22 | ||
| 23 | 91113826 | Bushing (#91113826) |
| 24 | ||
| 25 | 883704 | Silencer protection (#883704) USE 8837045 |
| 26 | 93301175 | CABLE CLAMP (#93301175) |
| 27 | 98210612 | Screw (#98210612) |
