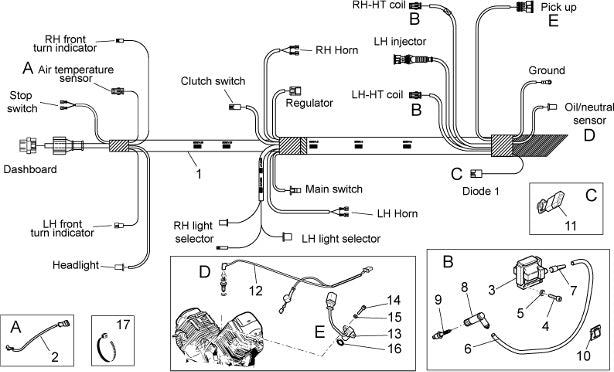

2011 2012 V7 Racer 750 E3 Electrical System I
| Position | Part Number | Description |
|---|---|---|
| 1 | 883077 | Main Wiring Harness - Nevada (#883077) |
| 2 | AP8124936 | Air Temp Sensor (#AP8124936) |
| 3 | 30716500 | IGNITION COIL (#30716500) |
| 4 | 98682125 | Screw (#98682125) |
| 5 | 95008204 | Washer (#95008204) |
| 6 | 01718330 | SPARK PLUG WIRE (#01718330) |
| 7 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 8 | ||
| 9 | 31717061 | SPARK PLUG USE BR8ES (#31717061) |
| 10 | AP8120708 | Black adh.cable guid (#AP8120708) |
| 11 | AP8212588 | Diode (#AP8212588) |
| 12 | 32724510 | Wiring - Breva (#32724510) |
| 13 | 01721600 | TIMING SENSOR (#01721600) |
| 14 | 98682212 | Hex Socket Screw (#98682212) |
| 15 | 95008205 | Washer 5.3mm (#95008205) |
| 16 | 90706141 | O RING (#90706141) USE 847180 |
| 17 | 14609650 | TIE WRAP (#14609650) |
| 17 | 49609601 | TIE STRAP (#49609601) |
