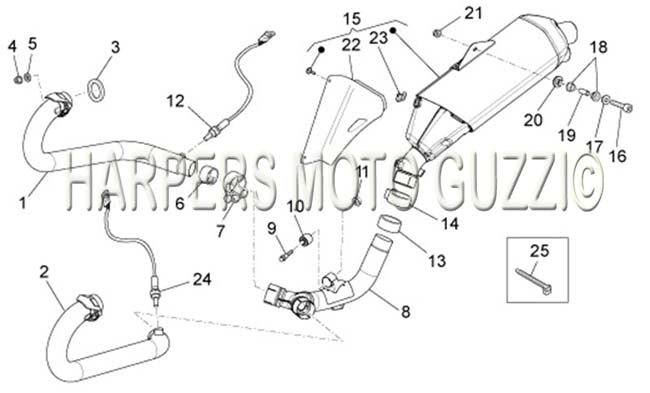

2011 2013 Stelvio 1200 8v Std NTX Exhaust Unit
| Position | Part Number | Description |
|---|---|---|
| 1 | 897622 | RH exhaust pipe (#897622) |
| 2 | 897623 | LH exhaust pipe (#897623) |
| 3 | 976376 | GRISO EXHAUST GASKET (#976376) |
| 4 | 92660021 | Nut (#92660021) |
| 5 | 14615901 | WASHER (#14615901) |
| 6 | 06123500 | GASKET (#06123500) |
| 7 | 883094 | EXHAUST MANIFOLD CLAMP (#883094) |
| 8 | 897624 | Central exhaust pipe (#897624) |
| 9 | AP8152410 | Screw w/ flange M10x55 (#AP8152410) |
| 10 | AP8220346 | SILENT BLOCK (#AP8220346) |
| 11 | AP8152301 | Self-locking nut M10 (#AP8152301) |
| 12 | 896110 | Lamda sensor (#896110) |
| 13 | 05128230 | Gasket (#05128230) |
| 14 | 976521 | CLAMP (#976521) |
| 15 | 886307 | Silencer (#886307) |
| 16 | 98680460 | Hex socket screw M8x60 (#98680460) |
| 17 | AP8134378 | Silencer Fixing Bushing (#AP8134378) |
| 18 | AP8144071 | Rubber Exhaust (#AP8144071) |
| 19 | AP8121072 | Spacer (#AP8121072) |
| 20 | 977582 | BUSSOLA A T 8,2X12X4,5 COL 28X3 (#977582) |
| 21 | 92650138 | Nut (#92650138) |
| 22 | 978444 | HEAT PROTECTION (#978444) |
| 23 | 28576591 | CLIP (#28576591) |
| 24 | 584344 | LAMBDA PROBE (#584344) |
| 25 | 93304390 | TIE WRAP (#93304390) |
