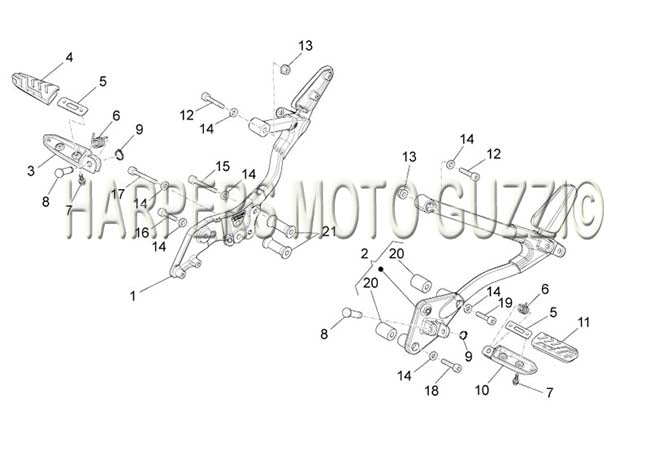

2011 2013 Stelvio 1200 8v Std NTX Frame Front Footrests
| Position | Part Number | Description |
|---|---|---|
| 1 | 886987 | RH foot rest support (#886987) |
| 2 | 883103 | LEFT FOOTREST BRACKET ASSY (#883103) |
| 3 | 886184 | RH Foot rests (#886184) |
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | ||
| 8 | ||
| 9 | ||
| 10 | 886185 | LH Foot rests (#886185) |
| 12 | 98680435 | Screw (#98680435) |
| 13 | ||
| 14 | 14615901 | WASHER (#14615901) |
| 15 | 98680480 | Screw, 8mmx80mm (#98680480) |
| 16 | 98682425 | Screw M8 X 25 (#98682425) |
| 17 | 98680465 | SCREW (#98680465) |
| 18 | 98680460 | Hex socket screw M8x60 (#98680460) |
| 19 | 98620485 | BOLT (#98620485) |
| 20 | 883107 | Spacer (#883107) |
| 21 | 886933 | Spacer (#886933) |
