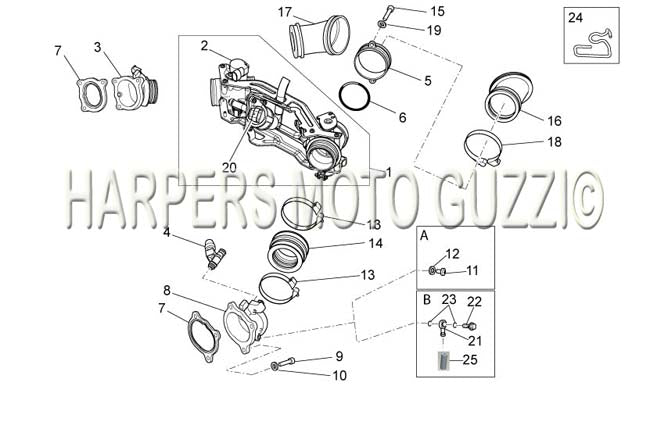

2011 2013 Stelvio 1200 8v Std NTX Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 880270 | Throttle body (#880270) |
| 2 | 981010 | RING SET (#981010) |
| 3 | 879878 | RH manifold (#879878) |
| 4 | CM074706 | FUEL INJECTOR (#CM074706) |
| 5 | 976498 | FLANGE (#976498) |
| 6 | 976566 | Ring (#976566) |
| 7 | 873879 | PACKING BETWEEN HEAD INTAKE FITTING (#873879) |
| 8 | 879877 | LH manifold (#879877) |
| 9 | 98882325 | Low head socket screw (#98882325) |
| 10 | 95008206 | WASHER (#95008206) |
| 11 | 98350310 | Screw (#98350310) |
| 12 | 95100116 | WASHER (#95100116) |
| 13 | 93305061 | CLAMP (#93305061) |
| 14 | 873861 | INTAKE TROTTLE VALVE-BODY/INTAKE FITTING (#873861) |
| 15 | 98682212 | Hex Socket Screw (#98682212) |
| 16 | 877057 | RH air pipe (#877057) |
| 17 | 877056 | LH air pipe (#877056) |
| 18 | 93306050 | Clamp (#93306050) |
| 19 | 95008305 | Washer (#95008305) |
| 20 | 896540 | Kit Min.regulation engine (#896540) |
| 21 | 95963062 | Union (#95963062) |
| 22 | 95990023 | BANJO BOLT (#95990023) |
| 23 | 90706009 | O-ring (#90706009) |
| 24 | 887209 | Fairlead (#887209) |
| 25 | 487567 | PLUG (#487567) |
