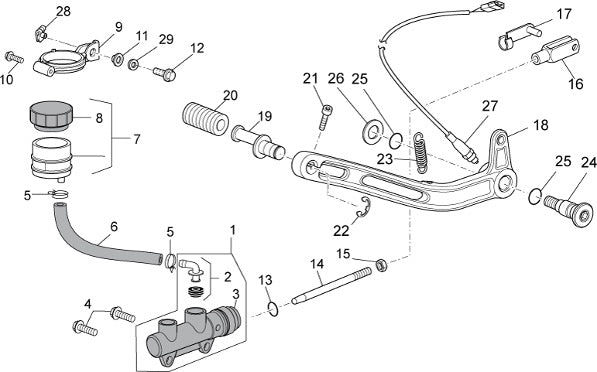

2011 2017 Stelvio 1200 8v E3 ABS Std NTX Frame Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 05666930 | Rear Brake Pump (#05666930) |
| 2 | ||
| 3 | ||
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | 05663530 | Brake Oil Tank Complete (#05663530) |
| 8 | 17661052 | MASTER CYLINDER LID W/ BELLOWS (#17661052) |
| 9 | 05666030 | Tank Support (#05666030) |
| 10 | ||
| 11 | ||
| 12 | 598839 | SCREW (#598839) |
| 13 | ||
| 14 | 977041 | MASTER CYLINDER ROD (#977041) |
| 15 | 92606206 | Nut (#92606206) |
| 16 | ||
| 17 | ||
| 18 | 06677000 | GRISO REAR BRAKE LEVER (#06677000) |
| 19 | ||
| 20 | ||
| 21 | 98682316 | ALLEN BOLT (#98682316) |
| 22 | ||
| 23 | 30434000 | SPRING, SIDE STAND (#30434000) |
| 24 | 884033 | BRAKE LEVER PIN (884033) (#884033) |
| 25 | ||
| 26 | 95008310 | Washer (#95008310) |
| 27 | ||
| 28 | 28576592 | Nut w/ Clip, 6mm (#28576592) |
| 29 | 95021206 | Washer (#95021206) |
