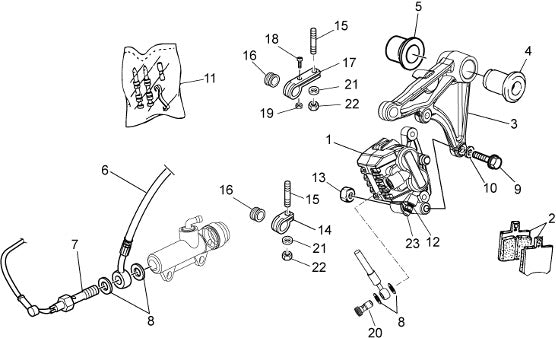

2012 2013 V7 Special stone E3 750 Rear Brake Caliper
| Position | Part Number | Description |
|---|---|---|
| 1 | 887449 | Rear brake caliper (#887449) |
| 2 | AP8133798 | Pads pair (#AP8133798) |
| 3 | 887431 | Support plate (#887431) |
| 4 | 31634281 | Bush (#31634281) |
| 5 | 32634160 | Spacer - Nevada (#32634160) |
| 6 | 887457 | PIPE FITTING (#887457) |
| 6 | B063750 | PIPE FITTING (#B063750) |
| 7 | 883192 | Brake Light Switch (#883192) |
| 8 | ||
| 9 | AP8152288 | Screw w/flange (#AP8152288) |
| 10 | ||
| 11 | AP8133799 | Pins+Caliper springs (#AP8133799) |
| 12 | AP8133800 | Air bleed valve (#AP8133800) |
| 13 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 14 | 03658430 | FASCETTA CORTA (#03658430) |
| 15 | 96451316 | Stud Bolt M6 X 16 (#96451316) |
| 16 | 03658201 | BUSHING (#03658201) |
| 17 | 03658330 | FASCETTA LUNGA (#03658330) |
| 18 | 98257410 | Screw (#98257410) |
| 19 | 92630104 | NUT (#92630104) |
| 20 | AP8113003 | Oil Pipe Screw (#AP8113003) |
| 21 | 95008306 | WASHER (#95008306) |
| 22 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 23 | AP8213575 | Bleed valve cap (#AP8213575) |
