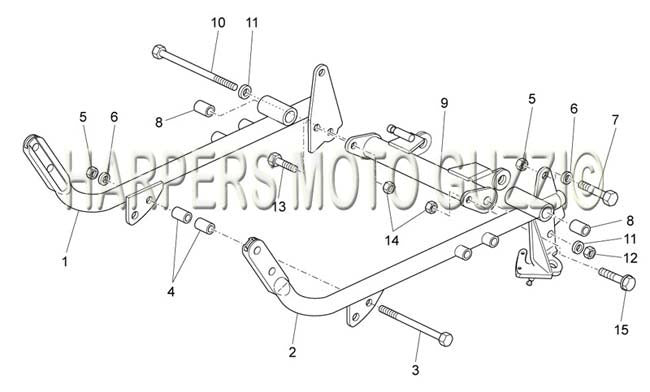

2012 Nevada S Anniversario 750 Frame II
| Position | Part Number | Description |
|---|---|---|
| 1 | B063244 | RIGHT BOTTOM ARM (#B063244) |
| 2 | B063245 | LEFT BOTTOM ARM (#B063245) |
| 3 | 53429500 | BOLT (#53429500) |
| 4 | 19017000 | BUSH (#19017000) |
| 5 | 92603010 | NUT A (#92603010) |
| 6 | 95008210 | Washer (#95008210) |
| 7 | 98082565 | Screw (#98082565) |
| 8 | 28252060 | BUSHING (#28252060) |
| 9 | 32431310 | Cradle Arms Conn. Crosspiece (#32431310) |
| 10 | AP8121367 | Pin (#AP8121367) |
| 11 | AP8152220 | Washer (#AP8152220) |
| 12 | AP8150436 | Nut (#AP8150436) |
| 13 | AP8152287 | Screw w/flange (#AP8152287) |
| 14 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 15 | AP8152288 | Screw w/flange (#AP8152288) |
