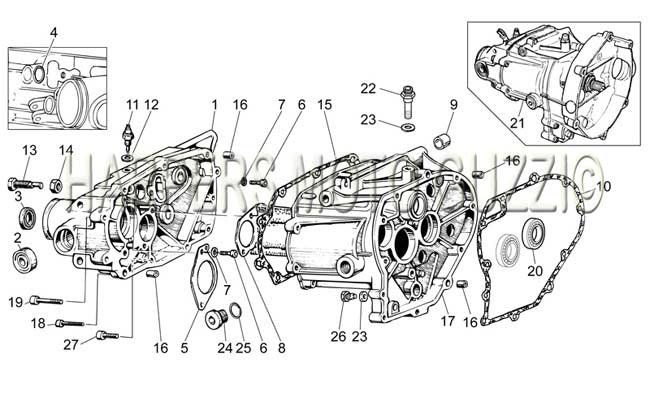

2012 V7 Racer 750 Transmission Cage
| Position | Part Number | Description |
|---|---|---|
| 1 | 887213 | Cover (#887213) |
| 2 | 92204215 | BEARING (#92204215) |
| 3 | 886364 | SEAL (#886364) |
| 4 | 90706140 | O RING (#90706140) |
| 5 | 32213810 | Plate - Breva (#32213810) |
| 6 | 884031 | SCREW (CYLINDER HEAD) (#884031) |
| 7 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 8 | 32208210 | Oil Bulhead - Breva (#32208210) |
| 9 | 19202320 | Bushing (#19202320) |
| 10 | 887005 | PACKING (#887005) |
| 11 | B063269 | STOP PUSH BOTTON (#B063269) |
| 12 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 13 | 19237800 | BOLT, CONCENTRIC (#19237800) |
| 14 | 92606512 | Low Nut (#92606512) |
| 15 | 887006 | PACKING (#887006) |
| 16 | 19002020 | BUSH (#19002020) |
| 17 | 887235 | Transmission Cage (#887235) |
| 18 | 98682330 | Screw, 6mmx30mm (#98682330) |
| 19 | 98680435 | Screw (#98680435) |
| 20 | B063342 | BALL BEARING (#B063342) |
| 21 | 976992 | Gear box assy (#976992) |
| 22 | 32206510 | Breather Plug - Breva (#32206510) |
| 23 | 10528900 | CRUSH WASHER, COPPER (#10528900) |
| 24 | 12022600 | PLUG (#12022600) |
| 25 | 90706203 | O RING (#90706203) |
| 26 | 31003766 | DRAIN PLUG (#31003766) |
| 27 | AP8150285 | HEX SOCKET SCREW (#AP8150285) |
