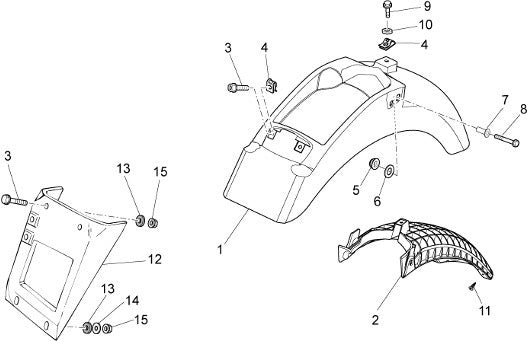

2013 2014 V7 Racer 750 E3 2012 2013 Rear Body I Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 97894600Y02 | REAR FENDER (#97894600Y02) |
| 2 | 978947 | REAR COVER (#978947) |
| 3 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 4 | 28576591 | CLIP (#28576591) |
| 5 | 92630108 | NUT 8MM (#92630108) |
| 6 | 91120806 | SPACER (#91120806) |
| 7 | 95005310 | WASHER (#95005310) |
| 8 | 98370835 | ALLEN BOLT (#98370835) |
| 9 | AP8152279 | Screw w/flange (#AP8152279) |
| 10 | 91180601 | Spacer (#91180601) |
| 11 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 12 | B063167 | MUDGUARD PLATE (#B063167) |
| 13 | AP8121032 | Bushing (#AP8121032) |
| 14 | 95100141 | WASHER (#95100141) |
| 15 | AP8152299 | Self-Locking Nut (#AP8152299) |
