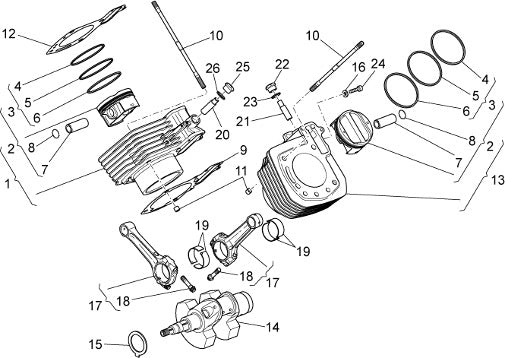

2015 2017 Griso S.E. 1200 8v E3 Drive Shaft Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 981008 | RH CYLINDER&PISTON 8V (#981008) |
| 2 | 873667 | COMPLETE DIAMETER PISTON (#873667) |
| 3 | 981009 | RING SET (#981009) |
| 4 | 874287 | FIRST COMPRESSION RING (#874287) |
| 5 | 874288 | SECOND COMPRESSION RING (#874288) |
| 6 | 874289 | OIL CONTROL RING (#874289) |
| 7 | 874286 | GUDGEON (#874286) |
| 8 | 874567 | Circlip (#874567) |
| 9 | 976312 | CYLINDER CARTER GASKET (#976312) |
| 10 | 976304 | CYLINDER HOLDING DOWN STUD (#976304) |
| 11 | 825597 | Nozzle for carter (#825597) |
| 12 | 874621 | Gasket (#874621) |
| 12 | 874622 | GASKET (#874622) |
| 12 | 976311 | CYLINDER HEAD GASKET (#976311) |
| 13 | 981007 | LH CYLINDER&PISTON 8V (#981007) |
| 14 | B0133785001 | Crankshaft cpl. (#B0133785001) |
| 14 | B0133785002 | Crankshaft cpl. (#B0133785002) |
| 14 | B0133785003 | Crankshaft cpl. (#B0133785003) |
| 15 | 874293 | Washer (#874293) |
| 16 | 95100116 | WASHER (#95100116) |
| 17 | 2A0000920A | Connecting rod cpl. 0.588-0.598 (#2A0000920A) |
| 17 | 2A0000920B | Connecting rod cpl. 0.598-0.608 (#2A0000920B) |
| 17 | 2A0000920C | Connecting rod cpl. 0.608-0.618 (#2A0000920C) |
| 17 | 8783390001 | Connecting rod cpl. (#8783390001) |
| 17 | 8783390002 | Connecting rod cpl. (#8783390002) |
| 17 | 8783390003 | Connecting rod cpl. (#8783390003) |
| 18 | 849131 | CONROD SCREW (#849131) |
| 19 | 875243 | Bearing half-shell (#875243) |
| 19 | 875244 | Bearing half-shell (#875244) |
| 20 | 873689 | CHAIN TENSIONER HYDRAULIC RH (#873689) |
| 21 | 873690 | CHAIN TENSIONER HYDRAULIC LH (#873690) |
| 22 | 976342 | Cap (#976342) |
| 23 | 849866 | Washer (#849866) |
| 24 | 98350310 | Screw (#98350310) |
| 25 | B015124 | CHAIN TENSIONER PLUG (#B015124) |
| 26 | B015126 | SEAL RING (O-RING) (#B015126) |
