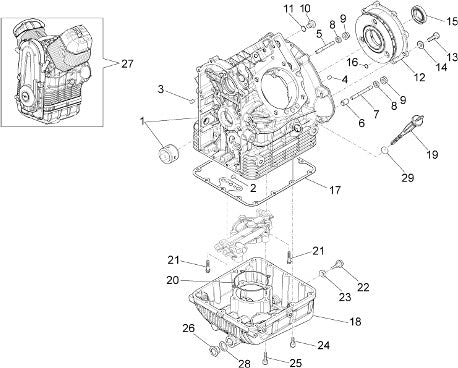

2015 2017 Griso S.E. 1200 8v E3 Engine Crank Case I
| Position | Part Number | Description |
|---|---|---|
| 1 | 8803984 | ENGINE BLOCK (#8803984) |
| 2 | 411209 | DOWEL (#411209) |
| 3 | 95512081 | PIN (#95512081) |
| 4 | 560110 | DOWEL (#560110) |
| 5 | 96508066 | SHORT STUD (#96508066) |
| 6 | 12018900 | BUSH (#12018900) |
| 7 | 96508075 | LONG STUD (#96508075) |
| 8 | 14615901 | WASHER (#14615901) |
| 9 | 92660021 | Nut (#92660021) |
| 10 | 12022600 | PLUG (#12022600) |
| 11 | 90706203 | O RING (#90706203) |
| 12 | 976703 | COMPLETE CRANKSHAFT FLANGE CLUTCH SIDE (#976703) |
| 13 | 98084425 | Bolt 8mmx25mm (#98084425) |
| 14 | 61270300 | WASHER (#61270300) |
| 15 | 90405367 | CRANKSHAFT SEAL - REAR MAIN (#90405367) |
| 16 | ||
| 17 | ||
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | 31003766 | DRAIN PLUG (#31003766) |
| 23 | 1528930 | #26 Gasket 10x18x1,5 (#1528930) |
| 24 | 98682330 | Screw, 6mmx30mm (#98682330) |
| 25 | ||
| 27 | ||
| 28 | ||
| 29 | 90706178 | O RING (#90706178) |
