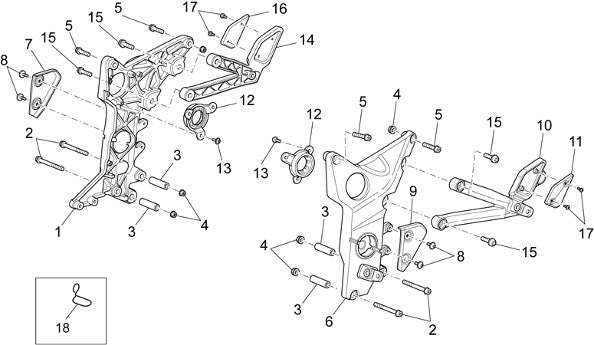

2015 2017 Griso S.E. 1200 8v E3 Foot Rests II
| Position | Part Number | Description |
|---|---|---|
| 1 | 977052 | RH PLATE (#977052) |
| 2 | 98700475 | Screw M8x75 (#98700475) |
| 3 | AP8121805 | Spacer * (#AP8121805) |
| 4 | AP8152300 | Self-Locking Nut (#AP8152300) |
| 5 | 98700430 | BOLT FOR UPPER U BOLT GRISO 850/1100 (#98700430) |
| 6 | 977053 | LH plate (#977053) |
| 7 | 06445900 | PROTECTION (#06445900) |
| 8 | 98710215 | SCREW (#98710215) |
| 9 | 06445901 | PARATACCO SX (#06445901) |
| 10 | 06446000 | LH footrest support (#06446000) |
| 11 | 06447501 | PARATACCO PEDANA PASSEG SX (#06447501) |
| 12 | 05446431 | Ring (#05446431) |
| 13 | 98350210 | Screw (#98350210) |
| 14 | 06443500 | RH foot rest support (#06443500) |
| 15 | 98700530 | VITE TCC IX M10X30 (#98700530) |
| 16 | 06447500 | PROTECTION (06447500) (#06447500) |
| 17 | 98370412 | SCREW (#98370412) |
| 18 | AP8120428 | Upper cable-guide (#AP8120428) |
