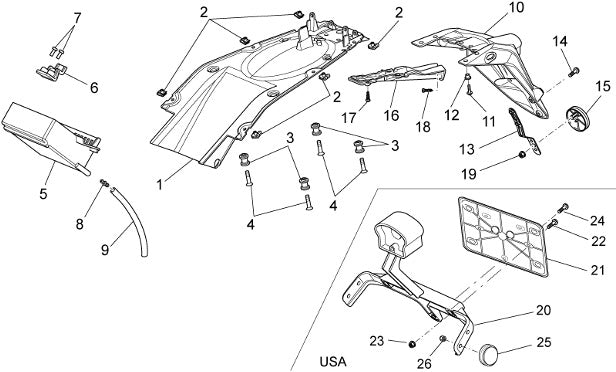

2015 2017 Griso S.E. 1200 8v E3 Frame Rear Body Mudguard

Position Part Number Description
1
2
3
4 98250835 Screw (#98250835)
5
6
7
8 6704700 Joint (#6704700)
9
10
11 98680222 Screw (#98680222)
12
13
14
15
16
17
18
19
20 883214 Number plate holder support (#883214)
21
22 98223530 Screw, 5mmx30mm (#98223530)
23 92650035 Nut (#92650035)
24
