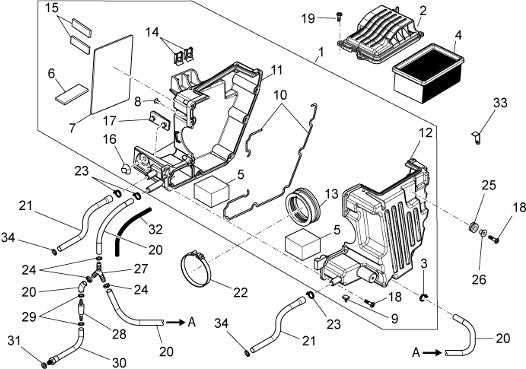

2015 V7 Racer 750 E3 Air Box II
| Position | Part Number | Description |
|---|---|---|
| 1 | 8878421 | AIR BOX ASSEMBLY (#8878421) |
| 2 | 887843 | AIR FILTER COVER (#887843) |
| 3 | AP8201358 | Hose Clamp (#AP8201358) |
| 4 | AP8104924 | AIR FILTER (#AP8104924) |
| 5 | AP8104525 | Filter (#AP8104525) |
| 6 | 883127 | Adhesive rubber (#883127) |
| 7 | AP8144553 | Support rubber part (#AP8144553) |
| 8 | AP8120876 | Plug (#AP8120876) |
| 9 | AP8120455 | Rubber spacer (#AP8120455) |
| 10 | AP8120615 | Gasket (#AP8120615) |
| 11 | 887844 | AIR BOX RIGHT COVER (#887844) |
| 12 | 887845 | AIR BOX LEFT COVER (#887845) |
| 13 | 887815 | INTAKE HOSE (#887815) |
| 14 | 254485 | SPRING PLATE (M6) (#254485) |
| 15 | AP8144538 | Gasket (#AP8144538) |
| 16 | 890760 | FLY SPRING (#890760) |
| 17 | AP8144729 | STAND END STOP (#AP8144729) |
| 18 | AP8152329 | Self-Tap Screw (#AP8152329) |
| 19 | AP8150509 | Self-taping screw (#AP8150509) |
| 20 | AP8120772 | Oil breather pipe (#AP8120772) |
| 21 | B063214 | BREATHER (#B063214) |
| 22 | 93305061 | CLAMP (#93305061) |
| 23 | AP8102766 | Hose Clamp (#AP8102766) |
| 24 | AP8102765 | Hose Clamp (#AP8102765) |
| 25 | 91551010 | GROMMET (#91551010) |
| 26 | AP8221023 | T Bush* (#AP8221023) |
| 27 | 2B000045 | OIL BREATHER PIPE (#2B000045) |
| 28 | AP8104996 | VALVE (#AP8104996) |
| 29 | 28157950 | BREATHER PIPE CLAMP (#28157950) |
| 30 | B063213 | BREATHER (#B063213) |
| 31 | 90714082 | FIBER WASHER USE 1215 4200 CRUSH WASHER (#90714082) |
| 32 | 00823923140 | THERMAL SHEATH (#00823923140) |
| 33 | 31112965 | PLATE (#31112965) |
