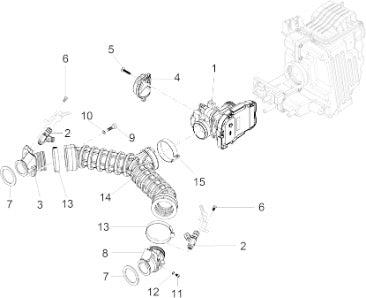

2015 V7 Racer 750 E3 Engine Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 1 | ||
| 2 | ||
| 3 | 32115010 | RH Manifold - Breva (#32115010) |
| 4 | 880260 | THROTTLE BODY COVER (#880260) |
| 5 | ||
| 6 | ||
| 7 | 32115510 | Gasket - Breva (#32115510) |
| 8 | 32115011 | LH Manifold - Breva (#32115011) |
| 9 | 98622322 | ALLEN BOLT (#98622322) |
| 10 | 03013800 | WAVE WASHER (#03013800) |
| 11 | 98310609 | Screw (#98310609) |
| 12 | 95100116 | WASHER (#95100116) |
| 13 | 884311 | CLAMP (#884311) |
| 14 | 887812 | SLEEVE (#887812) |
| 15 | 93305061 | CLAMP (#93305061) |
