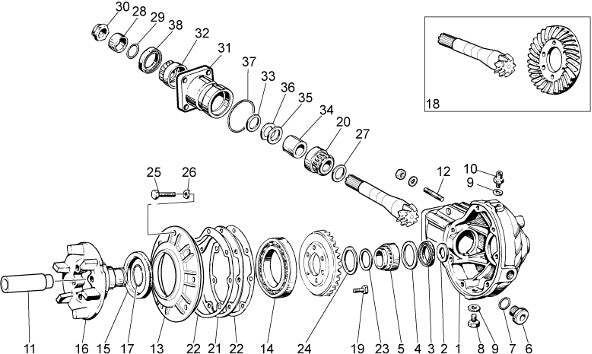

2015 V7 Racer 750 E3 Transmission Complete II
| Position | Part Number | Description |
|---|---|---|
| 1 | 976608 | CARDAN GROUP (#976608) |
| 2 | 19351900 | WASHER (#19351900) |
| 3 | 90403549 | Gasket Ring (#90403549) |
| 4 | 19351100 | SHIM (#19351100) |
| 5 | 92252235 | BEARING (#92252235) |
| 6 | 12022600 | PLUG (#12022600) |
| 7 | 90706203 | O RING (#90706203) |
| 8 | 31003766 | DRAIN PLUG (#31003766) |
| 9 | 01528930 | SEALING WASHER (#01528930) |
| 10 | 19206501 | VENT PLUG (#19206501) |
| 11 | 32633560 | Spacer - Nevada (#32633560) |
| 12 | 96508055 | STUD (#96508055) |
| 13 | 32350410 | Box Lid, Breva (#32350410) |
| 14 | 92201070 | BEARING (#92201070) |
| 15 | 90407591 | Main Rear Drive Seal Nevada/Breva/V7 (#90407591) |
| 16 | 32351410 | Pin 750 Breva (#32351410) |
| 17 | 90353030 | RETAINING RING (#90353030) |
| 18 | 32354610 | Bevel Gear - Breva (#32354610) |
| 19 | 03067730 | Screw (#03067730) |
| 20 | 92249227 | BEARING (#92249227) |
| 21 | 19355400 | SHIM .8MM (#19355400) |
| 21 | 19355402 | SHIM 0.9 MM (#19355402) |
| 21 | 19355404 | SHIM 1.0MM (#19355404) |
| 21 | 19355406 | SHIM 1.1 MM (#19355406) |
| 21 | 19355408 | SHIM 1.2 MM (#19355408) |
| 21 | 19355410 | SHIM 1.3MM (#19355410) |
| 21 | 19355411 | SHIM 1.4MM (#19355411) |
| 21 | 19355412 | SHIM 1.5MM (#19355412) |
| 21 | 19355413 | SHIM 1.6MM (#19355413) |
| 22 | 19350700 | GASKET (#19350700) |
| 23 | 19352300 | WASHER (#19352300) |
| 24 | 19353500 | WASHER (#19353500) |
| 25 | 19357660 | SCREW (#19357660) |
| 26 | 61270300 | WASHER (#61270300) |
| 27 | 19355320 | SHIM 1.0MM (#19355320) |
| 27 | 19355321 | SHIM 1.1MM (#19355321) |
| 27 | 19355322 | SHIM 1.2MM (#19355322) |
| 27 | 19355323 | SHIM 1.3MM (#19355323) |
| 27 | 19355324 | SHIM 1.4MM (#19355324) |
| 27 | 19355325 | SHIM 1.5MM (#19355325) |
| 27 | 19355326 | SHIM 1.6MM (#19355326) |
| 27 | 19355327 | SHIM 1.7MM (#19355327) |
| 27 | 19355328 | SHIM 1.8MM (#19355328) |
| 27 | 19355329 | SHIM 1.9MM (#19355329) |
| 28 | 19356801 | SPACER (#19356801) |
| 29 | 90706188 | O RING (#90706188) |
| 30 | 19356700 | NUT (#19356700) |
| 31 | 20352421 | Flange (#20352421) |
| 32 | 92249220 | TAPERED ROLLER BRNG. (#92249220) |
| 33 | 19355300 | SHIM 1.0MM (#19355300) |
| 33 | 19355301 | SHIM 1.1MM (#19355301) |
| 33 | 19355302 | SHIM 1.2MM (#19355302) |
| 33 | 19355303 | SHIM 1.3MM (#19355303) |
| 33 | 19355304 | SHIM 1.4MM (#19355304) |
| 33 | 19355305 | SHIM 1.5MM (#19355305) |
| 33 | 19355306 | SHIM 1.6MM (#19355306) |
| 33 | 19355307 | SHIM 1.7MM (#19355307) |
| 33 | 19355308 | SHIM 1.8MM (#19355308) |
| 33 | 19355309 | SHIM 1.9MM (#19355309) |
| 34 | 20355121 | Spacer (#20355121) |
| 35 | 19355200 | SHIM .1MM (#19355200) |
| 36 | 19355202 | SHIM .15MM (#19355202) |
| 37 | 90706584 | O RING (#90706584) |
| 38 | 90403251 | Gasket Ring (#90403251) |
