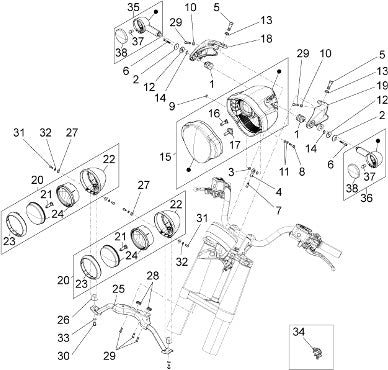

2016 California 1400 Corazzieri E3 ABS Lights Instruments Front Lights
| Position | Part Number | Description |
|---|---|---|
| 1 | 887698 | HEADLAMP ROTATION SPACER (#887698) |
| 2 | B063174 | HEADLAMP ROTATION BUSH (#B063174) |
| 3 | 91120605 | BUSHING (#91120605) |
| 4 | 887921 | M6 ROD END (#887921) |
| 5 | 98612320 | ALLEN BOLT (#98612320) |
| 6 | AP8150045 | HEX SOCKET SCREW M6X55* (#AP8150045) |
| 7 | AP8150285 | HEX SOCKET SCREW (#AP8150285) |
| 8 | AP8152281 | Screw w/ flange M6x30* (#AP8152281) |
| 9 | 92630206 | NUT (#92630206) |
| 10 | AP8150014 | WASHER 6,4X12X1,6 DA ISO 7089 R40 (#AP8150014) |
| 11 | AP8150015 | Washer 6,6x18x1,6* (#AP8150015) |
| 12 | 887697 | CURVED WASHER (#887697) |
| 13 | AP8150178 | Washer 6,4x12,5 (#AP8150178) |
| 14 | 006410 | CIRCLIP (#006410) |
| 15 | 887453 | headlight (#887453) |
| 16 | 294353 | BULB (#294353) |
| 17 | 294278 | BULB 12 V 55W (#294278) |
| 18 | 887554 | RH headlight supp. (#887554) |
| 19 | B063091 | LH headlight supp. (#B063091) |
| 20 | B063295 | HEADLAMP (#B063295) |
| 21 | 580734 | Bulb 12V 35W (#580734) |
| 22 | ||
| 23 | B063297 | HEADLAMP (#B063297) |
| 24 | B063343 | B063343 LIGHT ASSEMBLEY (#B063343) |
| 25 | 887997 | STIRRUP (#887997) |
| 26 | B063756 | FOG LIGHT SUPPORT (#B063756) |
| 27 | AP8221349 | T bush (#AP8221349) |
| 28 | AP8120594 | Silent-block (#AP8120594) |
| 29 | 98682320 | Screw (#98682320) |
| 30 | 98350416 | Screw (#98350416) |
| 31 | 98370614 | Screw (#98370614) |
| 32 | 03013800 | WAVE WASHER (#03013800) |
| 33 | AP8150376 | Curved spring washer * (#AP8150376) |
| 34 | AP8221310 | Fairlead d10,6 (#AP8221310) |
| 35 | B063028 | RIGHT FRONT T/SIGNAL (B063028) (#B063028) |
| 36 | B063029 | LH front turn indicator (#B063029) |
| 37 | AP8127489 | Lamp RY10W 12V (#AP8127489) |
| 38 | 2D000007 | TRANSPARENT (#2D000007) |
