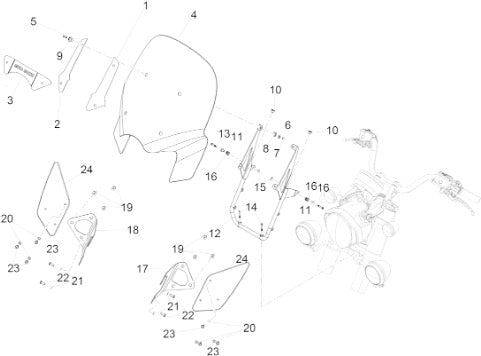

2016 California 1400 Touring SE E3 ABS Body Windshield
| Position | Part Number | Description |
|---|---|---|
| 1 | B063792 | WINDSHIELD LEFT PLATE COMPLETE (#B063792) |
| 2 | B063791 | RIGHT WINDSHIELD SUPPORT PLATE (B063791) (#B063791) |
| 3 | B063790 | WINDSHIELD CENTRAL PLATE COMPLETE (#B063790) |
| 4 | B063721 | Windshield (#B063721) |
| 5 | AP8152060 | SCREW 6X20 (#AP8152060) |
| 6 | AP8150378 | WASHER 6,4X18X1,4 INOX A2 (#AP8150378) |
| 7 | 92787006 | Nut, 6mmx1.0 (#92787006) |
| 8 | 32577910 | Rubber spacer (#32577910) |
| 9 | 03578432 | BUSHING (#03578432) |
| 10 | B063831 | COVER (#B063831) |
| 11 | B063830 | SPACER (B063830) (#B063830) |
| 12 | B063984 | FRAME FOR WINDSHIELD (# B063984) (#B063984) |
| 13 | AP8152479 | Hex socket screw M6x30 (#AP8152479) |
| 14 | B064320 | COUNTERSUNK SCREW M6X40 (#B064320) |
| 16 | 91551167 | GROMMET (#91551167) |
| 17 | 2B001906 | Windshield left support (#2B001906) |
| 18 | 2B001907 | Windshield right support (#2B001907) |
| 19 | AP8120531 | Rubber w/ insert * (#AP8120531) |
| 20 | AP8120591 | Washer 10x5,3x1 (#AP8120591) |
| 21 | AP8150429 | SPRING WASHER 6,4X11X0,5* (#AP8150429) |
| 22 | AP8152246 | SCREW W/ FLANGE (#AP8152246) |
| 23 | AP8152298 | Screw w/ flange (#AP8152298) |
| 24 | B064142 | SUPPORT (#B064142) |
