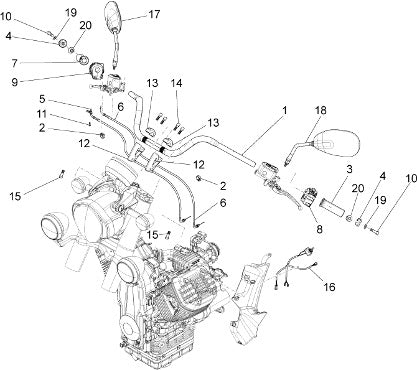

2016 California 1400 Touring SE E3 ABS Handlebar Controls Handlebar Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 887549 | TOURING HANDLEBAR (#887549) |
| 2 | 641652 | SPRING (#641652) |
| 3 | 03603060 | LH GRIP (#03603060) |
| 4 | 30602861 | BAR END WEIGHT (30602861) (#30602861) |
| 5 | 887567 | OPENING THROTTLE CABLE (#887567) |
| 6 | 887568 | LOCKING THROTTLE CABLE (#887568) |
| 7 | B063339 | THROTTLE TUBE WITH GRIP (#B063339) |
| 8 | 887795 | LIGHT HANDLEBAR SWITCH (#887795) |
| 9 | 887796 | RIGHT HANDLEBAR SWITCH (#887796) |
| 9 | B063030 | RIGHT HANDLEBAR SWITCH (#B063030) |
| 10 | 98692325 | BOLT (#98692325) |
| 11 | 978059 | SCREW (#978059) |
| 12 | 06500200 | LOWER U BOLT HANDLE BAR RISER GRISO 850/1100 (#06500200) |
| 13 | 06500600 | UPPER U BOLT GRIZO 850/1100 (#06500600) |
| 14 | AP8150540 | VITE TCC M8 X 30 (#AP8150540) |
| 15 | AP8152325 | LOWER BOLT FOR U BOLT GRISO 850/1100 (#AP8152325) |
| 16 | 887823 | LIGHTS SWITCH (#887823) |
| 17 | B064116 | MIRROR (B064116) (#B064116) |
| 18 | B064115 | LEFT REAR-VIEW MIRROR (#B064115) |
| 19 | AP8150182 | WASHER 6,4X11X0,5 ZN DIN 137A R150 (#AP8150182) |
| 20 | AP8121032 | Bushing (#AP8121032) |
