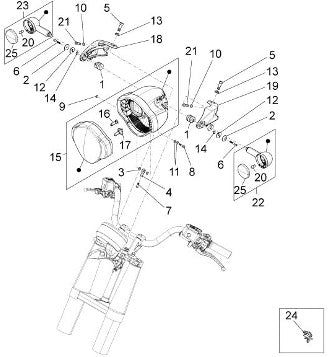

2016 Eldorado 1400 E4 ABS Lights Instruments Front Lights

Position Part Number Description
1 887698 HEADLAMP ROTATION SPACER (#887698)
2 B063174 HEADLAMP ROTATION BUSH (#B063174)
3 91120605 BUSHING (#91120605)
4 887921 M6 ROD END (#887921)
5 98612320 ALLEN BOLT (#98612320)
6 AP8150045 HEX SOCKET SCREW M6X55* (#AP8150045)
7 AP8150285 HEX SOCKET SCREW (#AP8150285)
8 AP8152281 Screw w/ flange M6x30* (#AP8152281)
9 92630206 NUT (#92630206)
10 AP8150014 WASHER 6,4X12X1,6 DA ISO 7089 R40 (#AP8150014)
11 AP8150015 Washer 6,6x18x1,6* (#AP8150015)
12 887697 CURVED WASHER (#887697)
13 AP8150178 Washer 6,4x12,5 (#AP8150178)
14 006410 CIRCLIP (#006410)
15 887453 headlight (#887453)
16 294353 BULB (#294353)
17 294278 BULB 12 V 55W (#294278)
18 2B000151 RH HEADLAMP SUPPORT (#2B000151)
19 2B000152 LH HEADLAMP SUPPORT (#2B000152)
20 AP8127489 Lamp RY10W 12V (#AP8127489)
21 98682320 Screw (#98682320)
22 B063029 LH front turn indicator (#B063029)
23 B063028 RIGHT FRONT T/SIGNAL (B063028) (#B063028)
24 AP8221310 Fairlead d10,6 (#AP8221310)
25 2D000007 TRANSPARENT (#2D000007)
