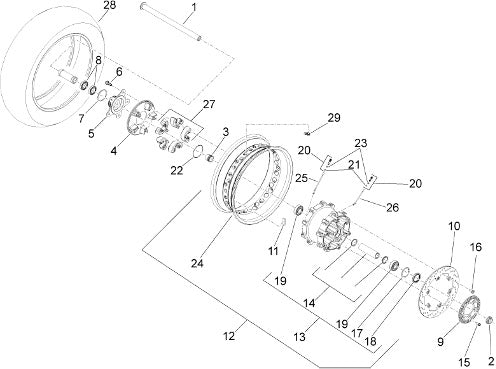

2016 Eldorado 1400 E4 ABS Wheels Rear Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 886967 | REAR WHEEL AXLE (#886967) |
| 2 | AP8152324 | Wheel spindle nut M25x1,5 (#AP8152324) |
| 3 | 887461 | DAMPER SPACER (#887461) |
| 4 | 887311 | DAMPER DRAGGING DISK (#887311) |
| 5 | 2B000090 | DAMPER DISK FLANGE (#2B000090) |
| 6 | B063849 | HEXAGON FLANGE BOLT DIN 6921 M10X30 10.9 (#B063849) |
| 7 | 887518 | SEAL RING (O-RING) (#887518) |
| 8 | 887517 | BEARING (#887517) |
| 9 | 887875 | FRONT TONE WHEEL (#887875) |
| 10 | 887489 | Brake disc (#887489) |
| 11 | 14616150 | WEIGHTS (#14616150) |
| 12 | 2B001952 | Rear wheel (#2B001952) |
| 13 | 2B001235 | REAR WHEEL HUB (#2B001235) |
| 14 | 887530 | REAR WHEEL INTERNAL SPACER (#887530) |
| 15 | AP8152285 | Screw w/ flange (#AP8152285) |
| 16 | 30611460 | ALLEN BOLT (#30611460) |
| 17 | AP8125839 | Snap ring d52 (#AP8125839) |
| 18 | AP8125838 | OIL SEAL RIPPER GAT AS AS 38X52X7 NBR 75 (#AP8125838) |
| 19 | AP8110093 | BEARING 6205-2RSH/C3 25X52X15 (#AP8110093) |
| 20 | 978810 | Nipple (#978810) |
| 21 | 978811 | Ring (#978811) |
| 22 | 90706664 | Ring (#90706664) |
| 23 | 90706061 | O RING (#90706061) |
| 24 | 2B0019554 | WHEEL RIM (#2B0019554) |
| 25 | 2B001951 | SPOKE (#2B001951) |
| 26 | 2B001950 | SPOKE (#2B001950) |
| 27 | B064290 | RUBBER DUMPER (#B064290) |
| 28 | 2B001328 | REAR TYRE (#2B001328) |
| 29 | 03617710 | Air Valve (#03617710) |
