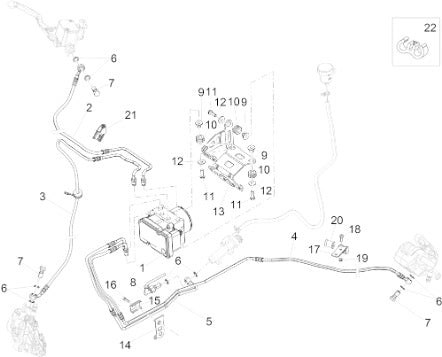

2016 V7 II Stornello 750 E3 ABS 2016 D Abs Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 2D000102 | FILLED CLUSTER MGA ABS (SPARE PARTS) (#2D000102) |
| 2 | 2B001557 | PIPE FITTING (#2B001557) |
| 3 | 2B001558 | PIPE FITTING (#2B001558) |
| 4 | 2B001556 | PIPE FITTING (#2B001556) |
| 5 | 2B001555 | PIPE FITTING (#2B001555) |
| 6 | AP8113004 | WASHER 10x14x1,6* (#AP8113004) |
| 7 | AP8113003 | Oil Pipe Screw (#AP8113003) |
| 8 | 854973 | Brake light switch (#854973) |
| 9 | AP8221023 | T Bush* (#AP8221023) |
| 10 | AP8120030 | Rubber Spacer (#AP8120030) |
| 11 | 00H02402282 | INLET MANIFOLD SECURING SCREW (#00H02402282) |
| 12 | AP8150015 | Washer 6,6x18x1,6* (#AP8150015) |
| 13 | 2B001016 | ABS hecu plate support (#2B001016) |
| 14 | 2B001564 | SUPPORT PLATE WITH P.I. (#2B001564) |
| 15 | 2B001614 | ABS FIXING PLATE (#2B001614) |
| 16 | 959559 | SCREW (#959559) |
| 17 | 03658330 | FASCETTA LUNGA (#03658330) |
| 18 | 895709 | Hex socket screw (#895709) |
| 19 | AP8150451 | NUT M5-UNI7474-A2-70 INOX (#AP8150451) |
| 20 | 03658201 | BUSHING (#03658201) |
| 21 | 2B001570 | ABS tubes rear support (#2B001570) |
| 22 | 2B000276 | CLIP FIXING PIPES (#2B000276) |
