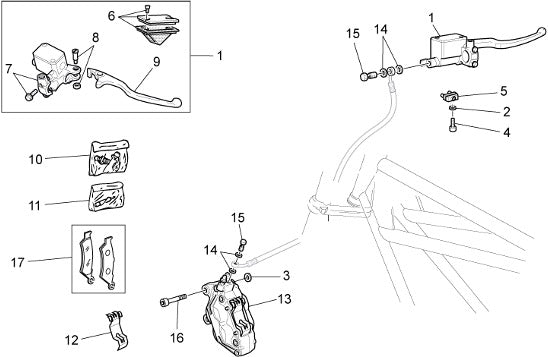

2016 V7 II Stornello 750 E3 ABS 2016 D Front Brake System
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B001199 | FRONT BRAKE (#2B001199) |
| 2 | 95021104 | WASHER (#95021104) |
| 3 | 91181003 | SPACER (#91181003) |
| 4 | AP8152043 | HEX SOCKET SCREW (#AP8152043) |
| 5 | 03749845 | MICRO SWITCH FRONT BRAKE (#03749845) |
| 6 | 2B001928 | Pump cover (#2B001928) |
| 7 | 2B001929 | SPARE PART CLAMP + SCREWS (#2B001929) |
| 8 | 2B001927 | Lever pin cpl. (#2B001927) |
| 9 | 2B001926 | SPARE PART LEVER (#2B001926) |
| 10 | 05659230 | Spurgo-Cappuccio (#05659230) |
| 11 | 01659130 | BLEEDING PAD PIN (#01659130) |
| 12 | 01659131 | FRT CALIPER SPRING (#01659131) |
| 13 | 2B001197 | FRONT BRAKE CAPILER (#2B001197) |
| 14 | AP8113004 | WASHER 10x14x1,6* (#AP8113004) |
| 15 | AP8113003 | Oil Pipe Screw (#AP8113003) |
| 16 | AP8152385 | HEX SOCKET SCREW (#AP8152385) |
| 17 | 883673 | BRAKE PAD (#883673) |
