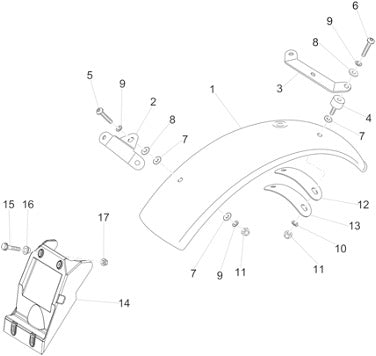

2016 V7 II Stornello 750 E3 ABS 2016 D Rear Body I Mudguard
| Position | Part Number | Description |
|---|---|---|
| 1 | 2S000237 | RR MUDGARD (#2S000237) |
| 2 | 2S000251 | BRACKET (#2S000251) |
| 3 | 2S000252 | BRACKET (#2S000252) |
| 4 | AP8120459 | Silent-block * (#AP8120459) |
| 5 | 98370621 | BOLT (#98370621) |
| 6 | 98230512 | SCREW (#98230512) USE 831153 |
| 7 | 2R000315 | TEFLON WASHER (#2R000315) |
| 8 | AP8150378 | WASHER 6,4X18X1,4 INOX A2 (#AP8150378) |
| 9 | AP8150380 | Washer 12,5x6,4 (#AP8150380) |
| 10 | 658830 | WASHER, WAVE (#658830) |
| 11 | AP8150430 | NUT M6 -UNI 7474-INOX A2-70 (#AP8150430) |
| 12 | 2S000255 | Rubber (#2S000255) |
| 13 | 2S000254 | Sheet (#2S000254) |
| 14 | 2B001783 | MUDGUARD PLATE (#2B001783) |
| 15 | 598839 | SCREW (#598839) |
| 16 | AP8121032 | Bushing (#AP8121032) |
| 17 | AP8152299 | Self-Locking Nut (#AP8152299) |
