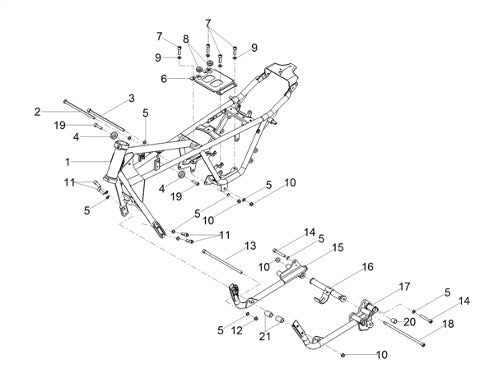

2017 2019 V7 III Racer 750 E4 ABS Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B003838 | V7 Racer Frame (#2B003838) |
| 2 | 98110199 | ROD (#98110199) |
| 3 | 2B001035 | Pin M10x234 (#2B001035) |
| 4 | 66103415 | RUBBER MOUNT (#66103415) |
| 5 | 95008210 | Washer (#95008210) |
| 6 | B063287 | FRAME PLATE JOIN (#B063287) |
| 7 | 2B002311 | TORX BUTTON HEAD SCREW M8x20 (#2B002311) |
| 8 | AP8120311 | Rubber spacer (#AP8120311) |
| 10 | 92630510 | NUT (#92630510) |
| 11 | 98682530 | Screw (#98682530) USE AP8150195 |
| 13 | 2B001612 | MOTOR MOUNT BOLT (2B001612) (#2B001612) |
| 14 | AP8150048 | Hex socket screw M10x40 (#AP8150048) |
| 15 | 2B003841 | FRAME FRONT SIDE (#2B003841) |
| 16 | 2B002810 | Trasversal link (#2B002810) |
| 17 | 2B003840 | FRAME FRONT SIDE (#2B003840) |
| 18 | 2B002817 | Pin M10 (#2B002817) |
| 19 | 98882416 | Screw 8mm x 16 (#98882416) |
| 20 | 2B004219 | Bushing (#2B004219) |
| 21 | 19017000 | BUSH (#19017000) |
