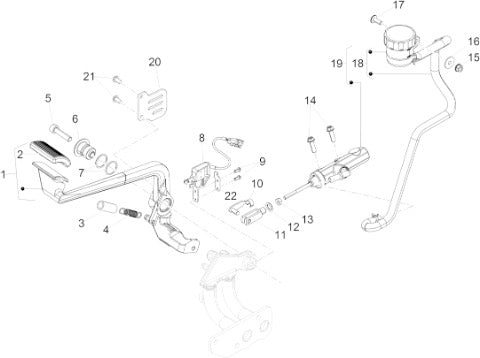

2017 2020 Audace 1400 Carbon E4 ABS Brake System Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 2B000473 | BRAKE LEVER ASSY (#2B000473) |
| 2 | 43262180 | PEDAL PAD (#43262180) |
| 3 | AP8120822 | Silent block, spring (#AP8120822) |
| 4 | AP8121927 | Rear brake lever spr (#AP8121927) |
| 5 | AP8150543 | VITE TCC M8 X 35 (#AP8150543) |
| 6 | 2B001747 | BRAKE/GEAR LEVER BUSH (#2B001747) |
| 7 | 288474 | Packing for oil filter (20,35x1,78) (#288474) |
| 8 | 2B001944 | COMPLETE REARBRAKE SWITCH (#2B001944) |
| 9 | 2B002146 | SCREW HEX SOCKET BUTTON HEAD (#2B002146) |
| 10 | AP8201301 | Gear Selector Fork Clips (#AP8201301) |
| 11 | AP8101968 | Fork (#AP8101968) |
| 12 | AP8120178 | O-ring 112 (#AP8120178) |
| 13 | 92606206 | Nut (#92606206) |
| 14 | AP8152279 | Screw w/flange (#AP8152279) |
| 15 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 16 | 95005320 | WASHER (#95005320) |
| 17 | 98210616 | Screw (#98210616) |
| 18 | 2B002534 | COMPLETE BRAKE OIL TANK (#2B002534) |
| 19 | 2B001601 | ABS REAR MASTER CYLINDER (#2B001601) |
| 20 | 2B002480 | RIGHT FOOTREST PROTECTION (#2B002480) |
| 21 | AP8150538 | HEX SOCKET SCREW M5 X 10 (#AP8150538) |
| 22 | 2B002457 | REINFORCEMENT PLATE (#2B002457) |
