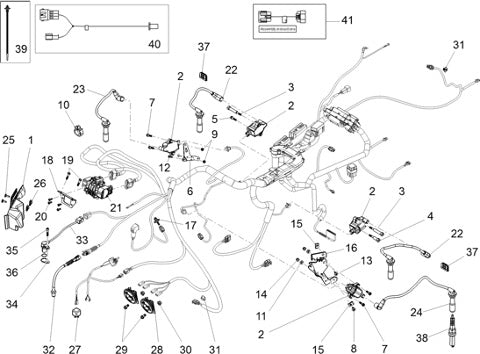

2017 2020 Audace 1400 Carbon E4 ABS Electrical Systems Front Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 887955 | DIP SWITCH CONNECTOR BOX (#887955) |
| 2 | 641901 | H.T. COIL (#641901) |
| 3 | B063162 | COVER LOCKING SCREW (#B063162) |
| 4 | B063844 | SCREW PIN (#B063844) |
| 5 | AP8152280 | Screw (#AP8152280) |
| 6 | B063508 | HT COIL SUPPORT (#B063508) |
| 7 | AP8152281 | Screw w/ flange M6x30* (#AP8152281) |
| 8 | 976614 | SCREW (CYLINDER HEAD) (#976614) |
| 9 | 92630206 | NUT (#92630206) |
| 10 | 641652 | SPRING (#641652) |
| 11 | AP8121032 | Bushing (#AP8121032) |
| 12 | AP8152278 | #12 Screw w/ flange M6x16* (#AP8152278 ) |
| 13 | AP8152302 | SCREW W/ FLANGE (#AP8152302) USE 2B014101 |
| 14 | AP8152299 | Self-Locking Nut (#AP8152299) |
| 15 | AP8102375 | Clip (#AP8102375) |
| 16 | B063742 | HT COIL SUPPORT (#B063742) |
| 17 | AP8124936 | Air Temp Sensor (#AP8124936) |
| 18 | B063015 | HGSYSTEM SUPPORT (#B063015) |
| 20 | AP8150509 | Self-taping screw (#AP8150509) |
| 21 | B044414 | DEMAND SENSOR (#B044414) |
| 22 | 2D000182 | SPARK PLUG WIRE (2D000182) (#2D000182) |
| 23 | 2D000181 | SPARK PLUG WIRE 2D000181 (#2D000181) |
| 24 | 2D000180 | 2D000180 (#2D000180) |
| 27 | AP8224462 | STARTER RELAY 12V20A GRISO-NORGE-BREVA (#AP8224462) |
| 28 | 890979 | Horn (#890979) |
| 29 | 98370616 | BOLT (#98370616) |
| 30 | 254485 | SPRING PLATE (M6) (#254485) |
| 31 | 890760 | FLY SPRING (#890760) |
| 32 | 887421 | TEMPERATURE SENSOR (#887421) |
| 33 | ||
| 34 | B063592 | ADJ.SHIM KIT FOR RPM SENS. 8/1.0/1.2MM (#B063592) |
| 35 | 98682316 | ALLEN BOLT (#98682316) |
| 36 | 90706141 | O RING (#90706141) USE 847180 |
| 37 | B063131 | RUBBER HIGH VOLTAGE CABLES (#B063131) |
| 38 | 887016 | Spark PlugLMAR8F-9 (# 887016) (#887016) |
| 39 | B064017 | BATTERY FIXING (#B064017) |
| 40 | 2D000169 | CABLE HARNESS (#2D000169) |
| 41 | 2R000309 | INTERFACE KIT (#2R000309) |
