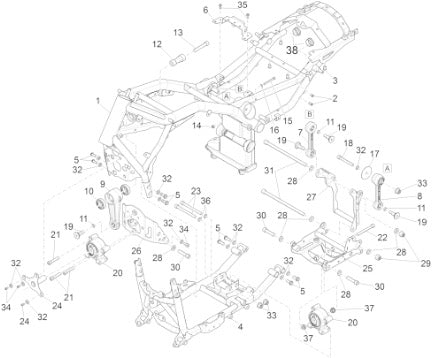

2017 2020 California 1400 Touring E4 ABS Frame Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 886836 | UPPER FRAME (#886836) |
| 2 | ||
| 3 | ||
| 4 | ||
| 5 | 98683530 | Bolt, Caliper (#98683530) |
| 6 | 887719 | COMPLETE SADDLE PLATE (#887719) |
| 7 | 8870134 | COMPLETE REAR CONROD (#8870134) |
| 8 | 8870864 | COMPLETE REACTION CONROD (#8870864) |
| 9 | 887014 | COMPLETE FRONT CONROD (#887014) |
| 10 | ||
| 11 | 273774 | FING (#273774) |
| 12 | 887261 | CONROD PIN (#887261) |
| 13 | ||
| 13 | ||
| 14 | ||
| 15 | 98680360 | Screw (#98680360) |
| 16 | 95008306 | WASHER (#95008306) |
| 17 | 887728 | PLATE (#887728) |
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | ||
| 24 | 887491 | COMPLETE SILENTBLOCK SUPPORT (#887491) |
| 25 | 887248 | SUPPORT PWT PLATE (#887248) |
| 26 | 887254 | SUPPORT PWT PLATE (#887254) |
| 27 | 887260 | SUPPORT PWT PLATE (#887260) |
| 28 | 95008313 | Washer, 13X24X2.5 (#95008313) |
| 29 | ||
| 30 | ||
| 31 | ||
| 32 | 95008210 | Washer (#95008210) |
| 33 | ||
| 34 | ||
| 35 | ||
| 36 | 95008310 | Washer (#95008310) |
| 37 | 887264 | BUSH (#887264) |
| 38 | 978301 | HUB PLUG (#978301) |
