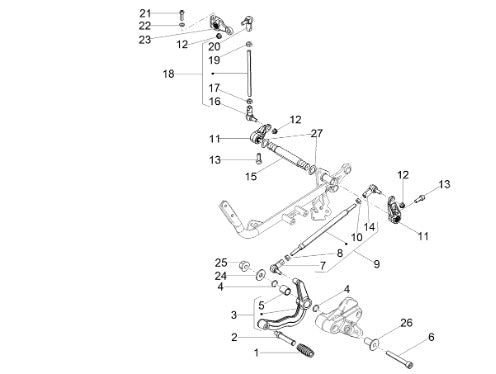

2017 2020 V7 III Stone 750 E4 ABS Gear Lever
| Position | Part Number | Description |
|---|---|---|
| 1 | AP8120912 | Lever rubber (#AP8120912) |
| 2 | ||
| 3 | 2B003348 | Gear drive lever (#2B003348) |
| 4 | AP8144007 | O-Ring (#AP8144007) |
| 5 | 895328 | BUSH (#895328) |
| 6 | 98680460 | Hex socket screw M8x60 (#98680460) |
| 7 | 898397 | ARICULATED JOINT (#898397) |
| 8 | 92606206 | Nut (#92606206) |
| 9 | 2B003606 | Gear control tie rod (#2B003606) |
| 10 | 31256881 | Nut (#31256881) |
| 11 | 898283 | Gear lever (#898283) |
| 12 | AP8150115 | LOW SELF-LOCKING NUT 6-UNI 7474/2 5.8 (#AP8150115) |
| 13 | 98692318 | ALLEN SCREW (#98692318) |
| 14 | 898396 | ARICULATED JOINT (#898396) |
| 15 | 2B001009 | GEAR DRIVE LEVER PIN (#2B001009) |
| 16 | AP8110053 | Left ball joint M6 (#AP8110053) |
| 17 | AP8152138 | Nut M6 sx (#AP8152138) |
| 18 | 2B001941 | Connecting rod gearbox driver (#2B001941) |
| 19 | AP8150026 | Nut M6* (#AP8150026) |
| 20 | AP8210007 | RH ball joint M6 (#AP8210007) |
| 21 | 98632322 | Screw (#98632322) |
| 22 | 03013800 | WAVE WASHER (#03013800) |
| 23 | 20258221 | Shift lever (#20258221) |
| 24 | AP8150018 | Washer (#AP8150018) |
| 25 | 967363 | NUT (#967363) |
| 26 | AP8121509 | Bush (#AP8121509) |
| 27 | 95129260 | SPRING WASHER (#95129260) |
