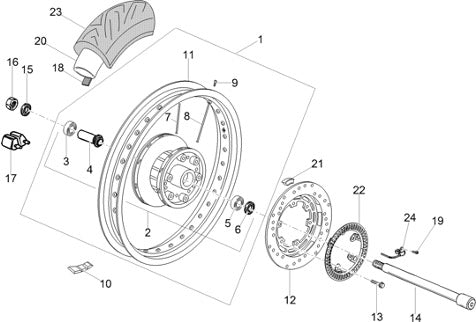

2017 V7 III Anniversario 750 E4 ABS Wheels Rear Wheel
| Position | Part Number | Description |
|---|---|---|
| 1 | 887861 | REAR WHEEL (#887861) |
| 2 | 32692260 | ASS. MOZZO POST NEV COMPL CUSC. BOCC (#32692260) |
| 3 | 92204218 | BEARING (#92204218) |
| 4 | 27633910 | SPACER A (#27633910) |
| 5 | 92204217 | BALL BEARING, REAR WHEEL (#92204217) |
| 6 | 90402538 | Gasket ring (#90402538) |
| 7 | 883350 | SPOKE (#883350) |
| 8 | 883349 | SPOKE (#883349) |
| 9 | 03631250 | Spoke Nipple 4mm (#03631250) |
| 10 | 14616150 | WEIGHTS (#14616150) |
| 11 | 887862 | WHEEL RIM (#887862) |
| 12 | 887448 | Brake disc (#887448) |
| 13 | 887762 | Screw w/ flange M8x22 (#887762) |
| 14 | 32633360 | Rear Wheel Spindle - Nevada (#32633360) |
| 15 | 31634481 | Washer (#31634481) |
| 16 | 92606316 | Nut (#92606316) |
| 17 | 32632510 | Rubber Coupling - Breva (#32632510) |
| 18 | 28612033 | CLAMP (#28612033) |
| 19 | 1C001499 | SCREW (#1C001499) |
| 20 | 30630430 | Inner tube (#30630430) |
| 21 | 32636160 | Support rubber part (#32636160) |
| 22 | 2B000225 | Encoder (#2B000225) |
| 23 | 886680 | Rear tyre (#886680) |
| 24 | 859792 | Sensor ABS (#859792) |
