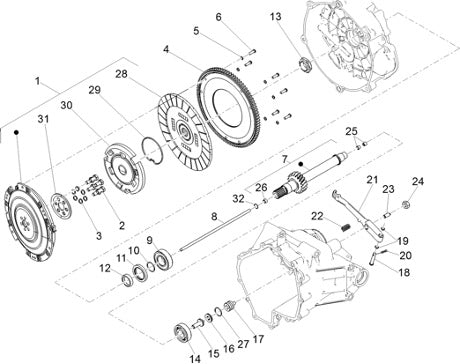

2017 V9 Bobber 850 E4 ABS Engine Clutch
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | 19067700 | SCREW (#19067700) |
| 3 | 14615901 | WASHER (#14615901) |
| 4 | ||
| 5 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 6 | ||
| 7 | ||
| 8 | ||
| 9 | 92201226 | Ball Bearing 25X52X15 (#92201226) |
| 10 | 90706235 | O RING (#90706235) |
| 11 | 886629 | Seal (886629) (#886629) |
| 12 | 19213760 | SPACER (#19213760) |
| 13 | 19356760 | NUT (#19356760) |
| 14 | ||
| 15 | ||
| 16 | ||
| 17 | 14086100 | OUTER CLUTCH BODY (#14086100) |
| 18 | ||
| 19 | ||
| 20 | 95500222 | SPLIT PIN (#95500222) |
| 21 | ||
| 22 | 94321105 | SPRING (#94321105) |
| 23 | ||
| 24 | 92606508 | Nut (#92606508) |
| 25 | 14085900 | CLUTCH PUSH ROD SEAL (TAKES 2) (#14085900) |
| 26 | 05217630 | Bush (#05217630) |
| 27 | 90706170 | O RING (#90706170) |
| 28 | ||
| 29 | ||
| 30 | ||
| 31 | ||
| 32 |
